Complete Turbo Rebuild Assembly for 7.3l IDI Turbo 93-94 Ford Diesel

Drop In Billet Compressor Wheel for 7.3l IDI Turbo engines.

Billet Compressor Specs:
Inducer: 58.4mm
Exducer Base: 70 mm
Primary Tip Height: 33 mm
Secondary Tip Height: 21.6 mm
Weight: 82.3 Grams
Nose Width: 15.7 mm
Blades: 6/6
Pre-balanced
Reinforced Blade Base
Larger Blades for Increased Flow
Increased Throttle Response

Replacement Turbine wheel:

• 64.4mm x 56.4mm
• 11 Blade

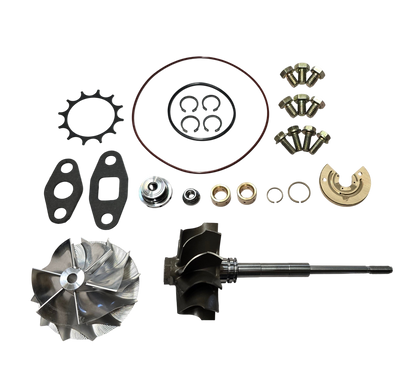

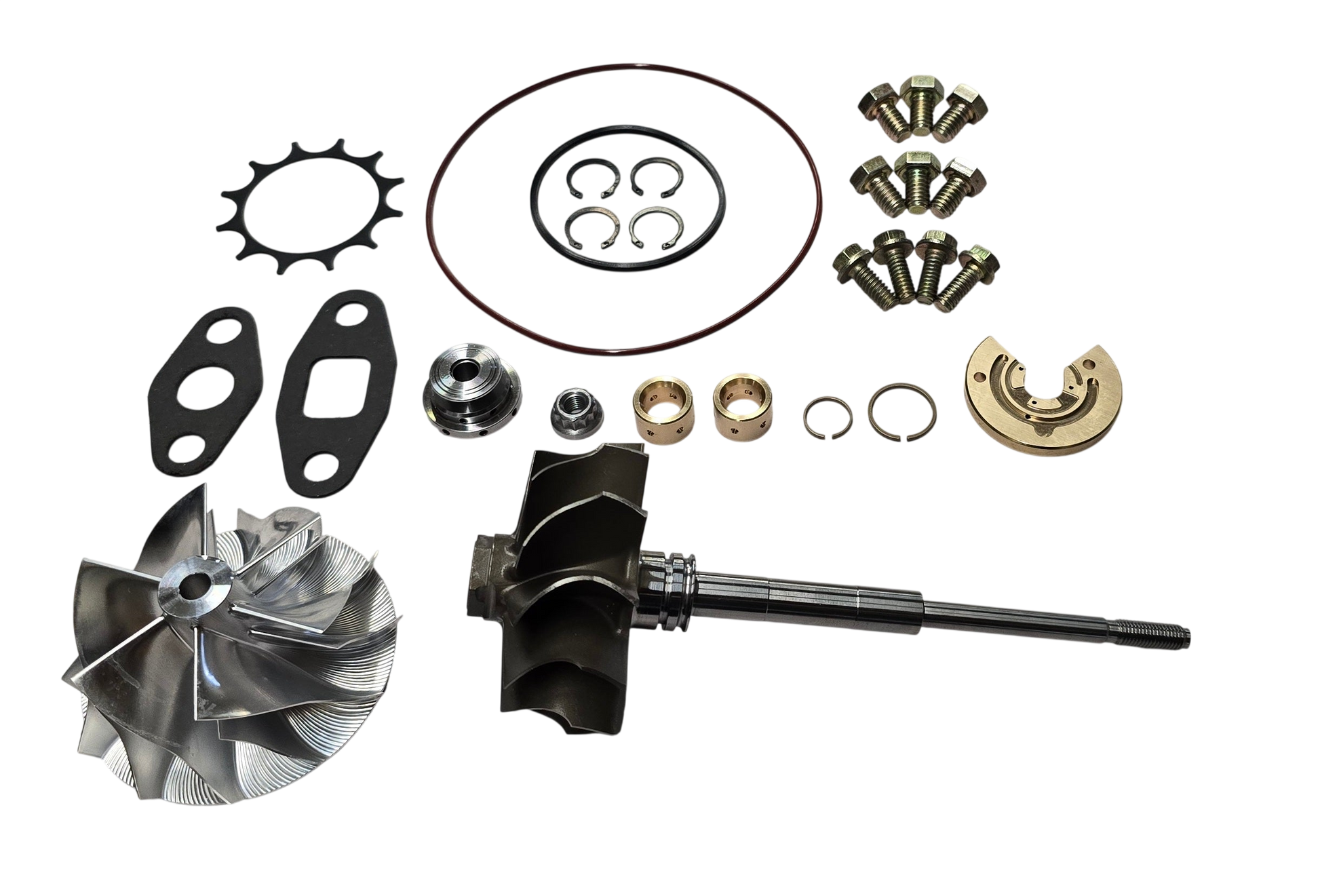

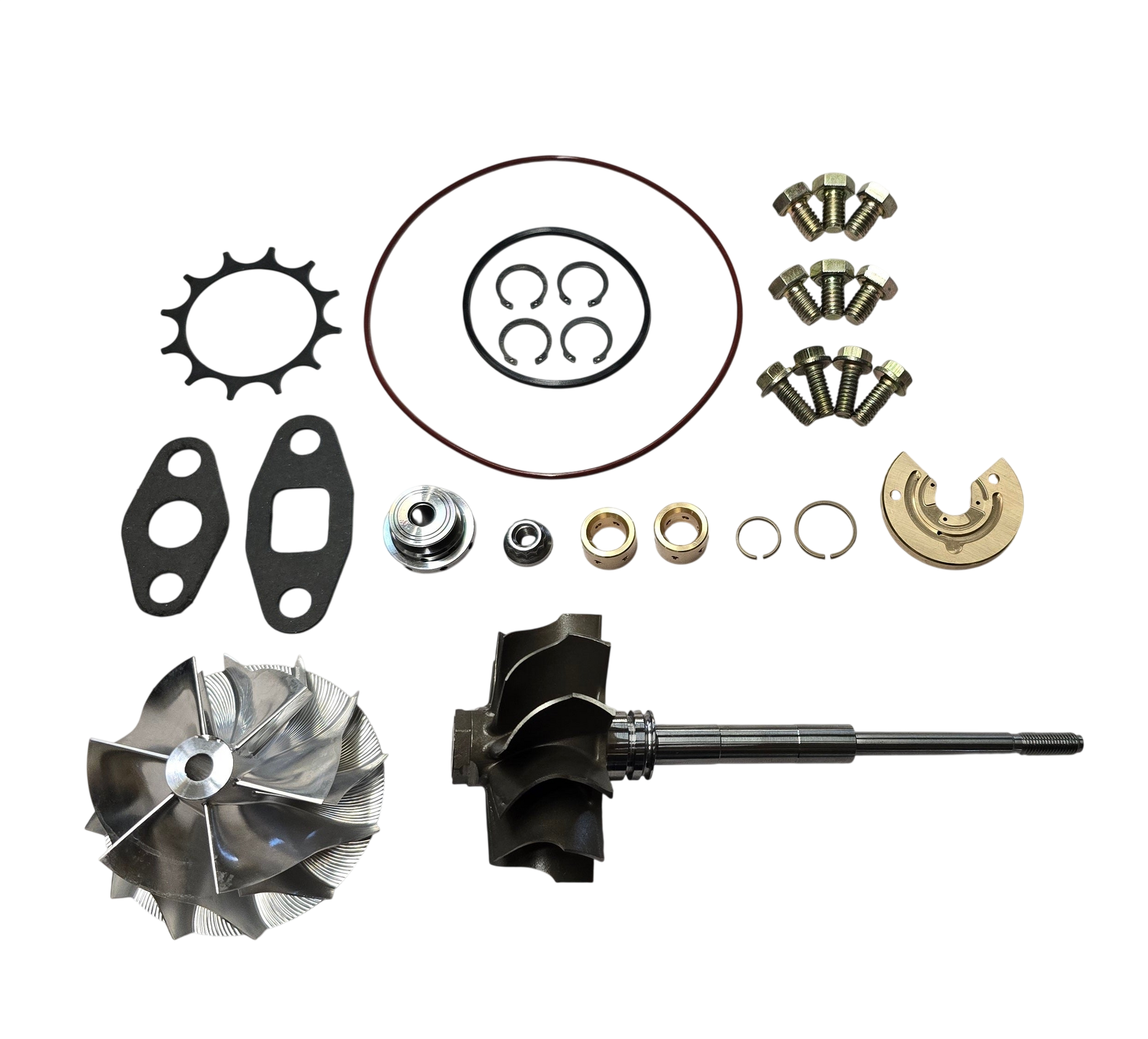

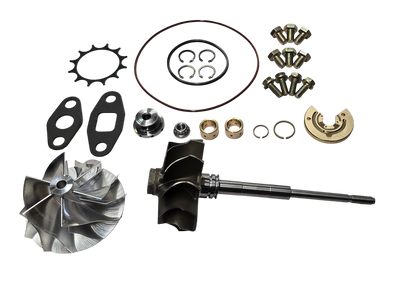

Turbo Rebuild Kit Includes:
2 - O-Rings
1 - Brass Thrust Bearing
1 - Thrust Bearing Collar/Spacer
2 - Journal Bearings
2 - Gaskets
2 - Oil Seals
4 - C Clips
1 - Compressor Wheel Nut
4 - Mounting Bolts
1 - Steel Sprocket Ring

Fits: 7.3l IDI 1993-1994 Ford diesel engines with OEM Turbo (pre powerstroke).
