KB Diesel Performance LLC

Engine Coolant Filter Kit for 2003-2007 5.9l Dodge Cummins

Engine Coolant Filter Kit for 2003-2007 5.9l Dodge Cummins

Regular price $154.95
Sale price $154.95 Regular price
Sale Sold out
Shipping calculated at checkout.
Coolant Filter Options

Keep the cooling system clean of debris with our 5.9l coolant filtration kit!

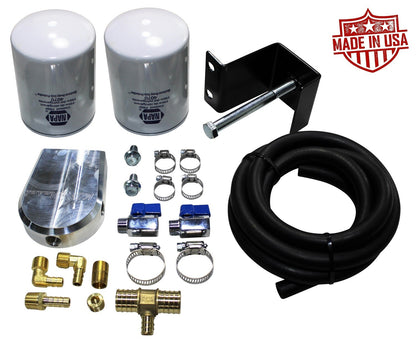

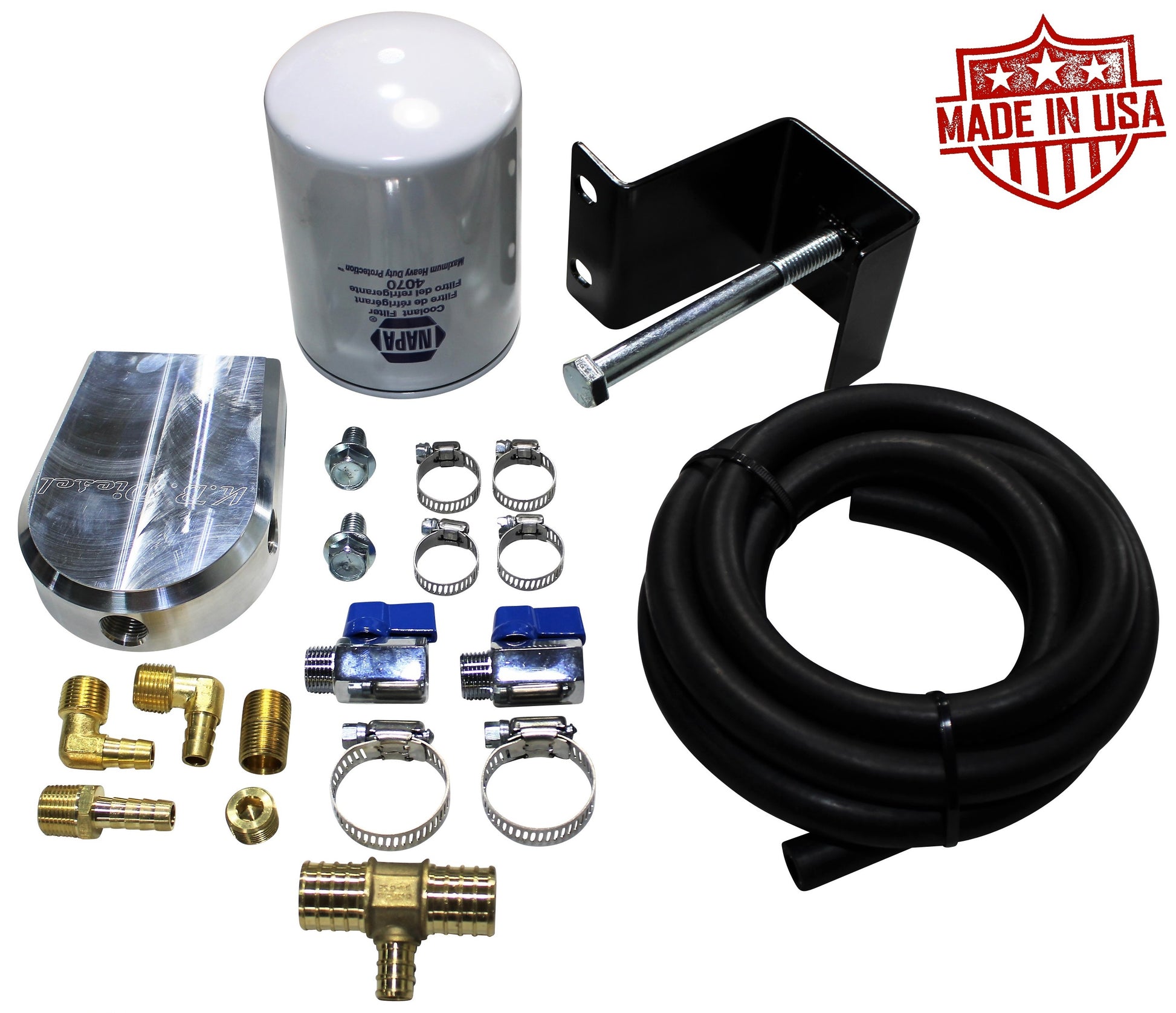

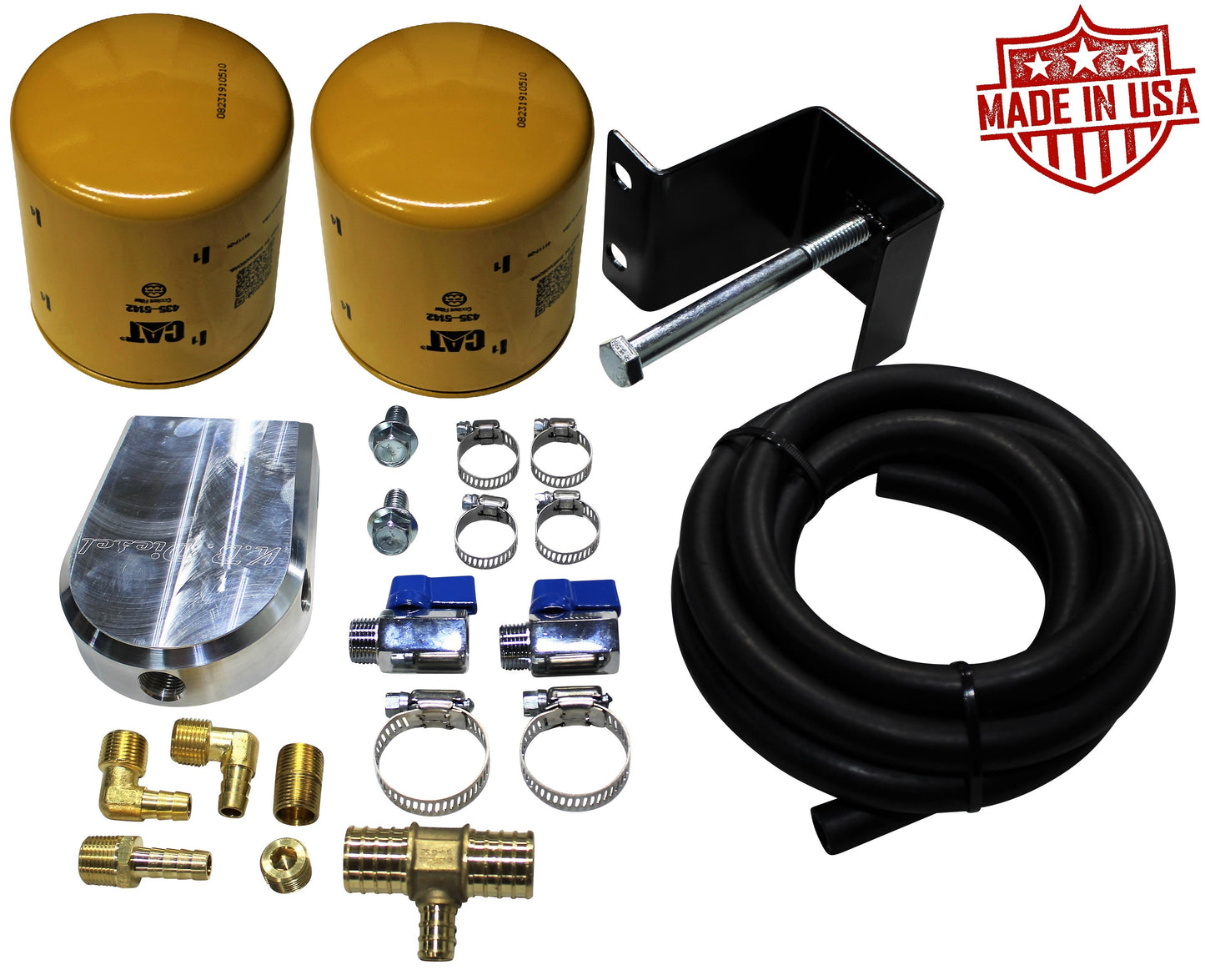

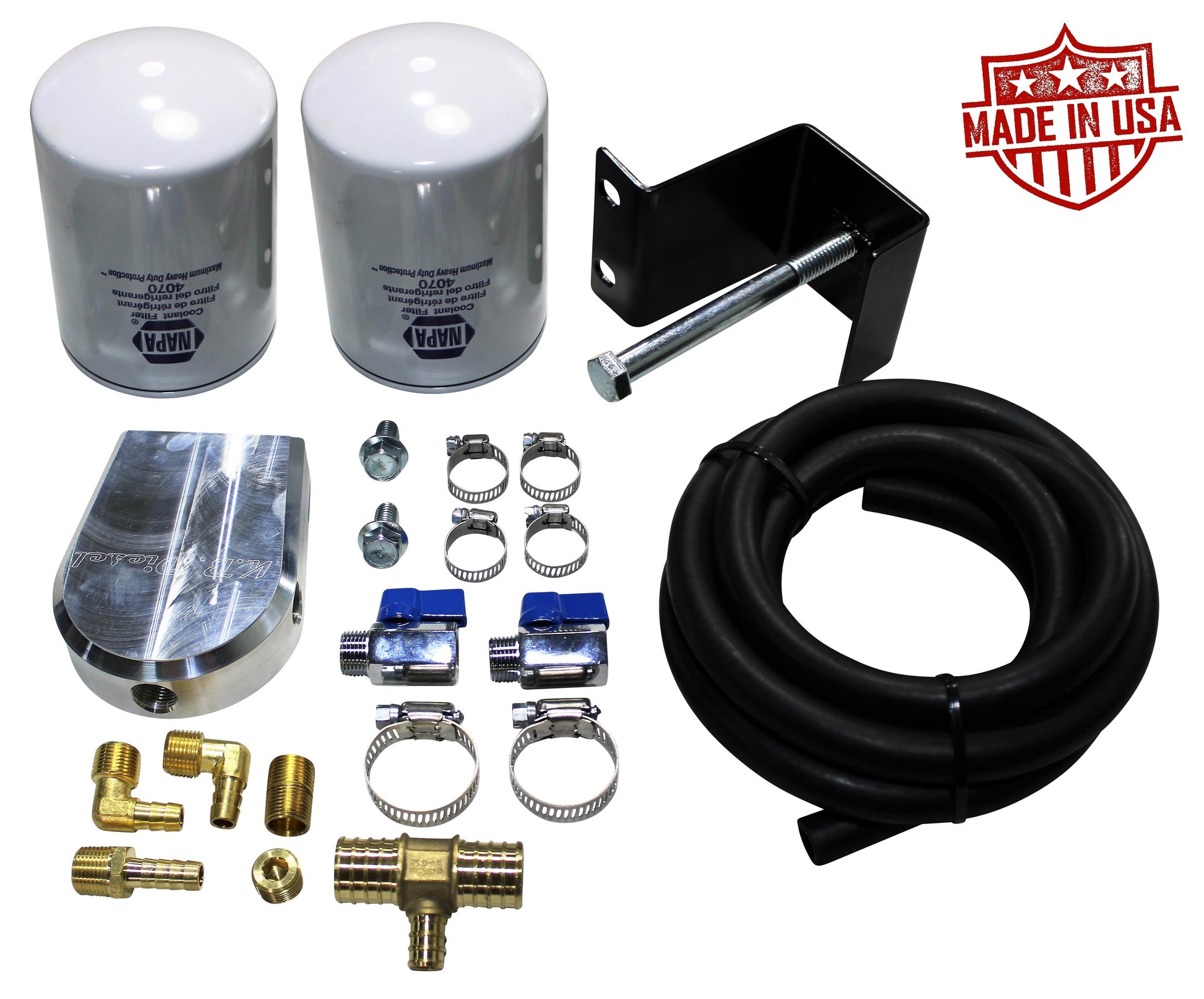

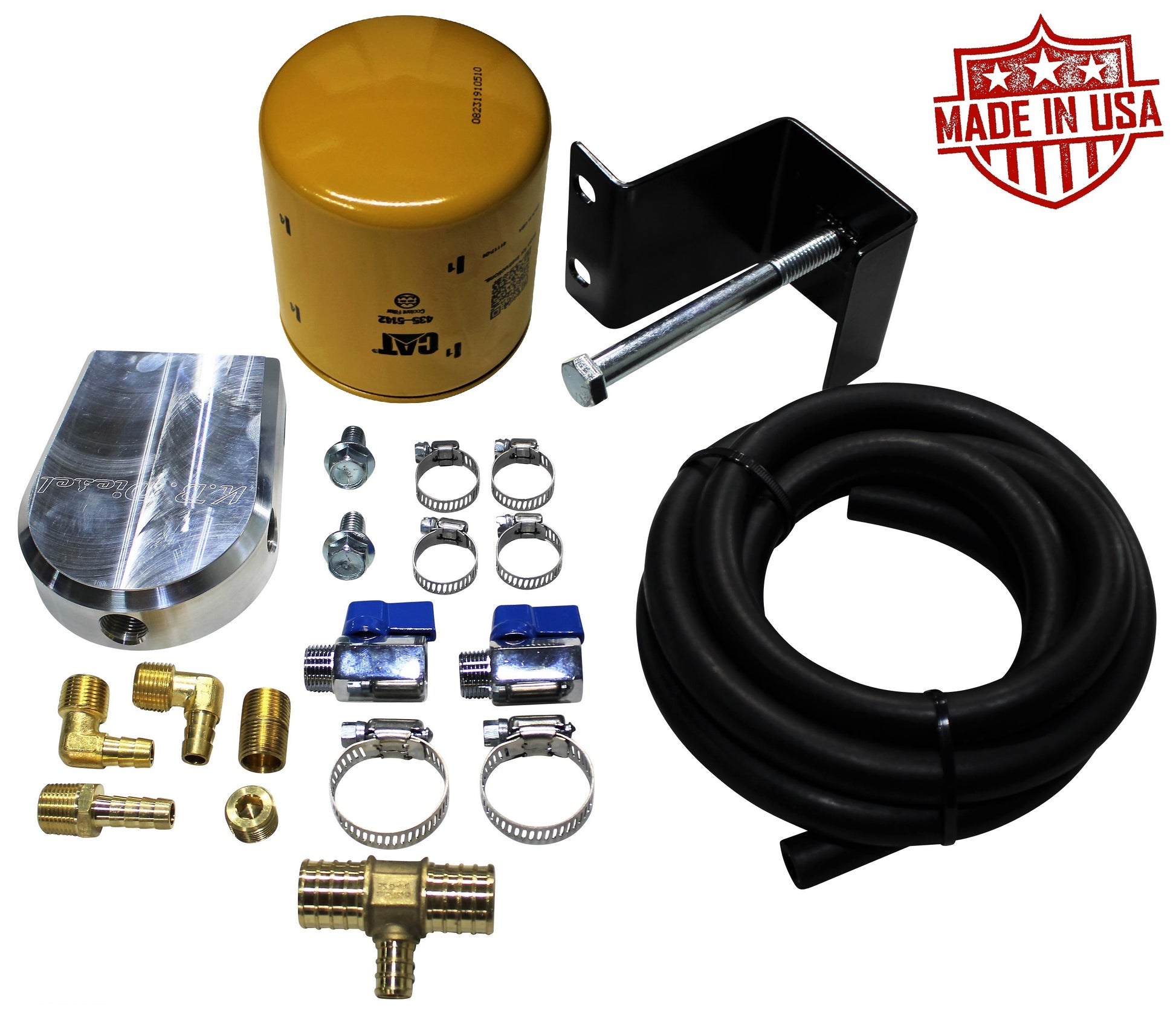

Includes:

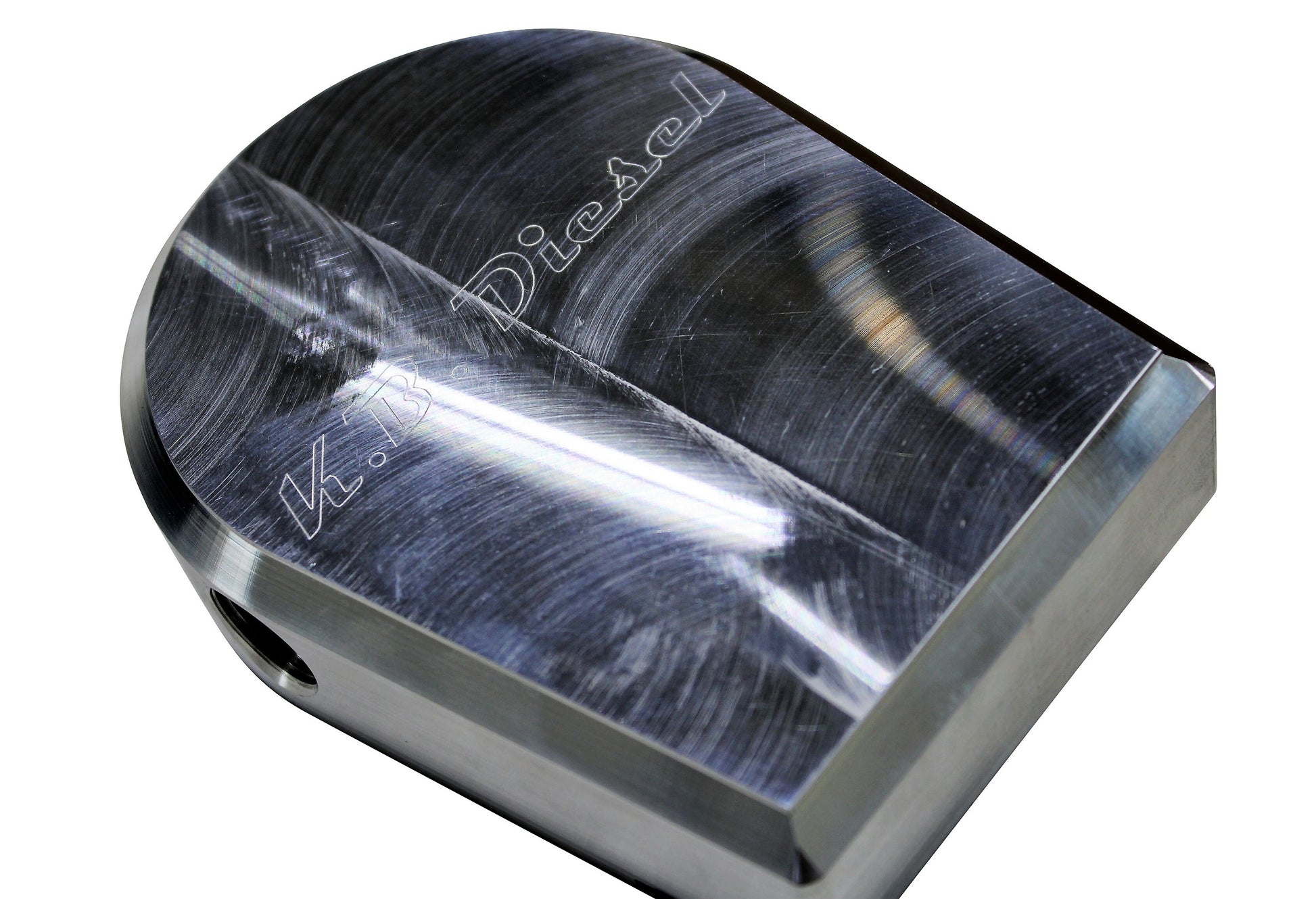

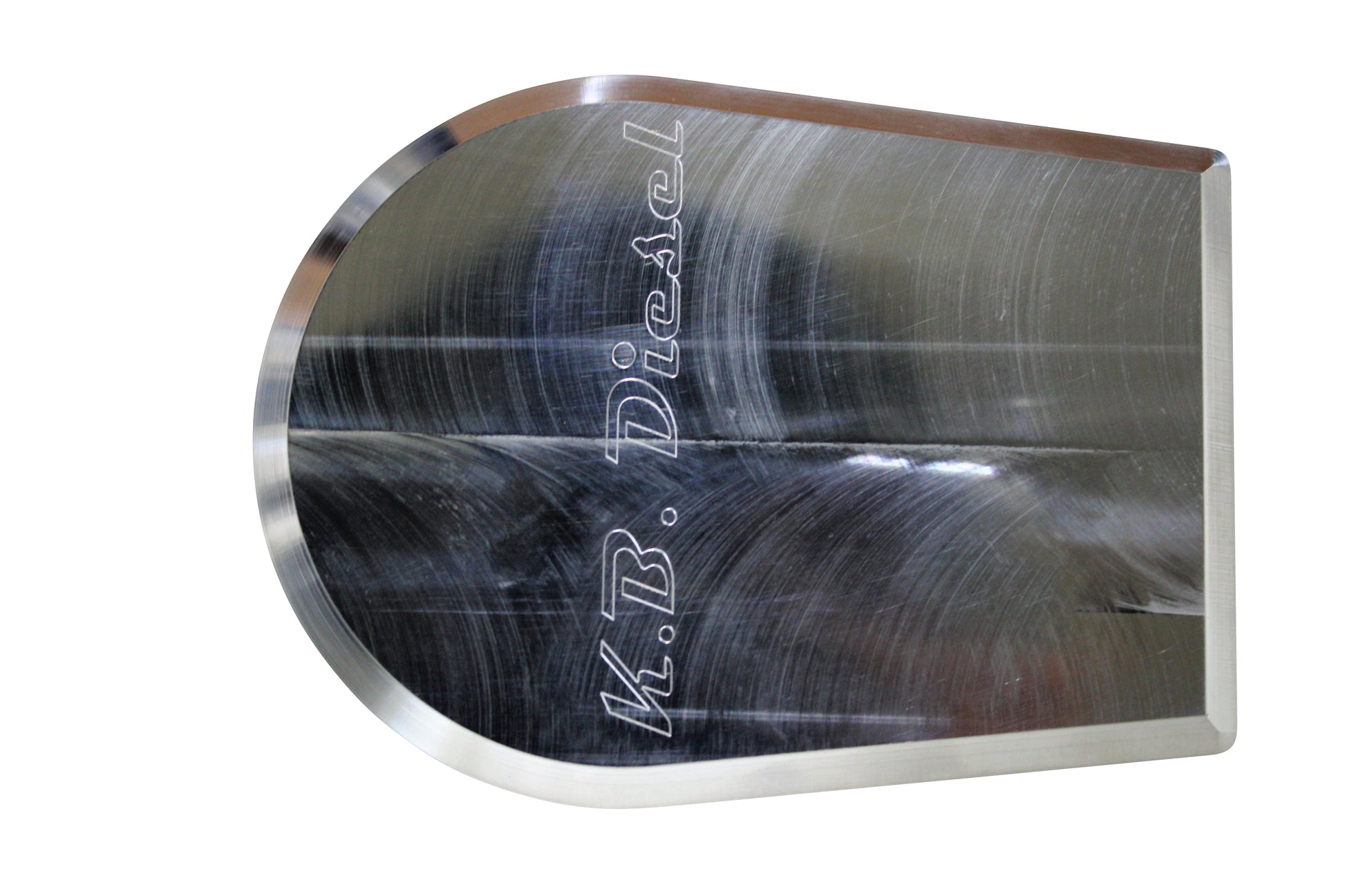

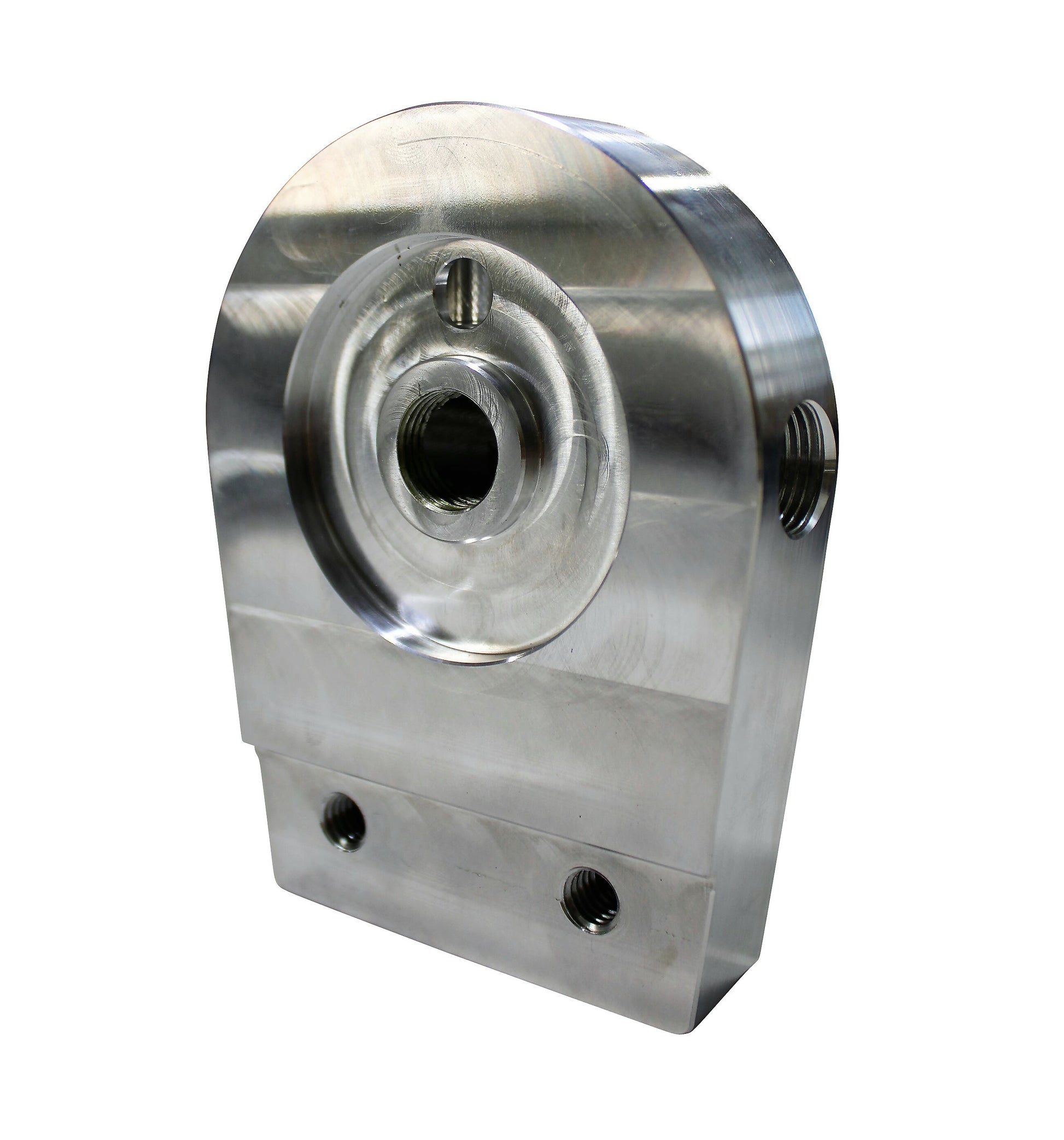

1. Coolant Filter Base (Made in USA)

1. Mounting Bracket (Made in USA)

1. Option of Coolant Filter(s)

1. 1/2 by 8" Long Mounting Bolt

1. Filter Nipple

10.5' of 3/8" Coolant Hose

2. 3/8" Ball Valves

4. #6 Hose Clamps

2. #12 Hose Clamps

1. Brass 1/4 MPT to 3/8 Barb

2. Brass 90Β° MPT to 3/8 Barb

1. Brass Tee 3/4-3/8-3/4

2. 3/8 Mounting Bolts

1. 3/8 Countersunk Hex Plug

List of filters that can be used on our base:

NAPA: 4070, 4073, 4069

Wix: 24070, 24073, 2469

CAT: 435-5142

Fits: 2003-2007 2500/3500 Dodge trucks with 5.9l Cummins

Installation Notes:

Mounting Location: Passenger side frame rail, using factory hole through the frame rail. Bracket sits on top of the frame, the bolt is inserted from the bottom of the frame.

Return Hose: Side of filter mount to 3/4" hose leaving the heater core to cylinder head

Supply Hose: End of filter mount (90Β° from return hose) to 1/4" NPT port located on passenger side of engine head near valve cover

Made In USA Disclaimer: Filter base & bracket are made in the USA. Hose clamps, hardware, hose and fittings may be sourced globally.
