Complete Turbo Rebuild Kit for HE351VE HE300VG Turbos 6.7l Cummins
Complete Turbo Rebuild Kit for HE351VE HE300VG Turbos 6.7l Cummins
Couldn't load pickup availability
Turbo Kit for HE351VE HE300VG Turbos 6.7l Cummins

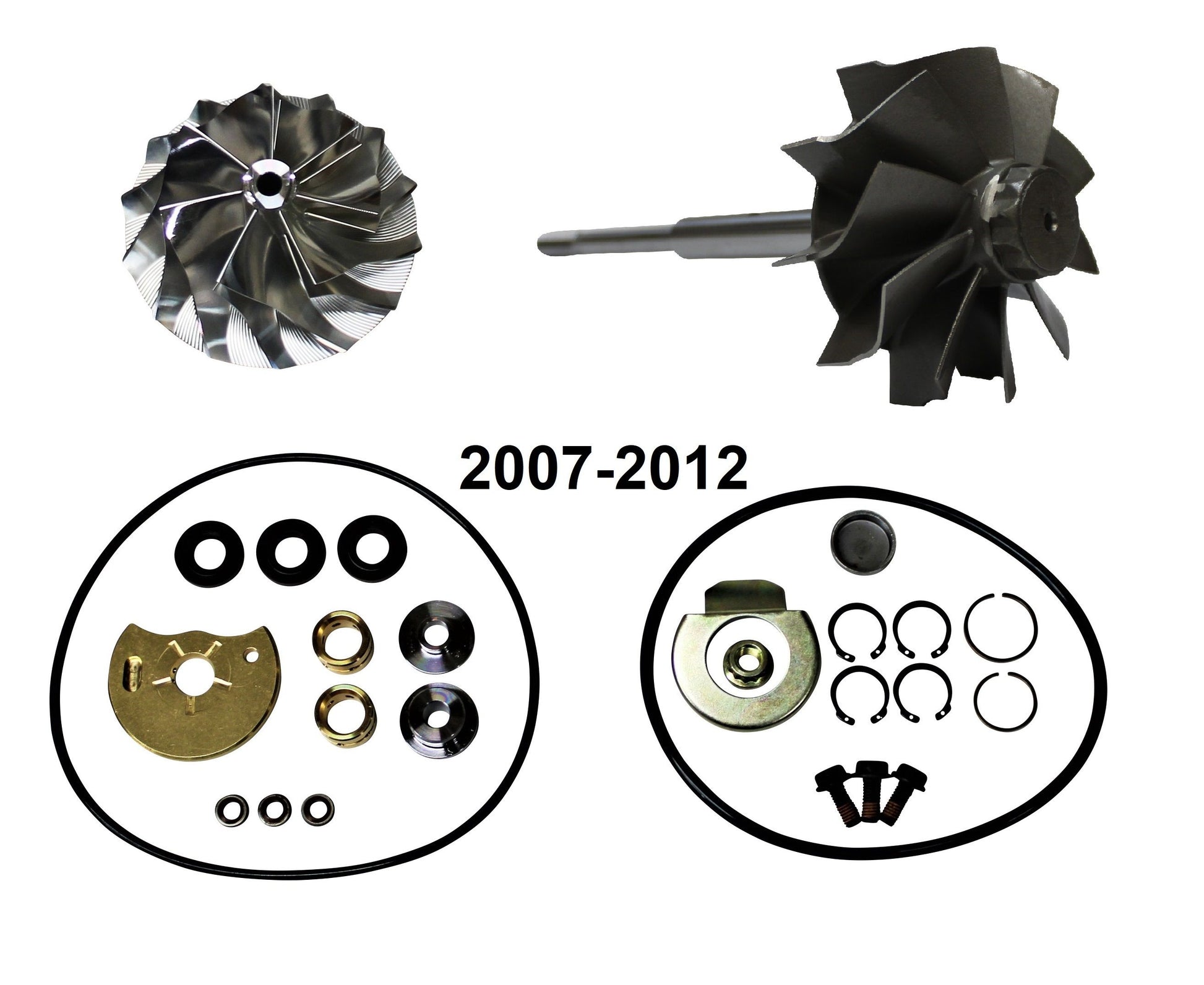

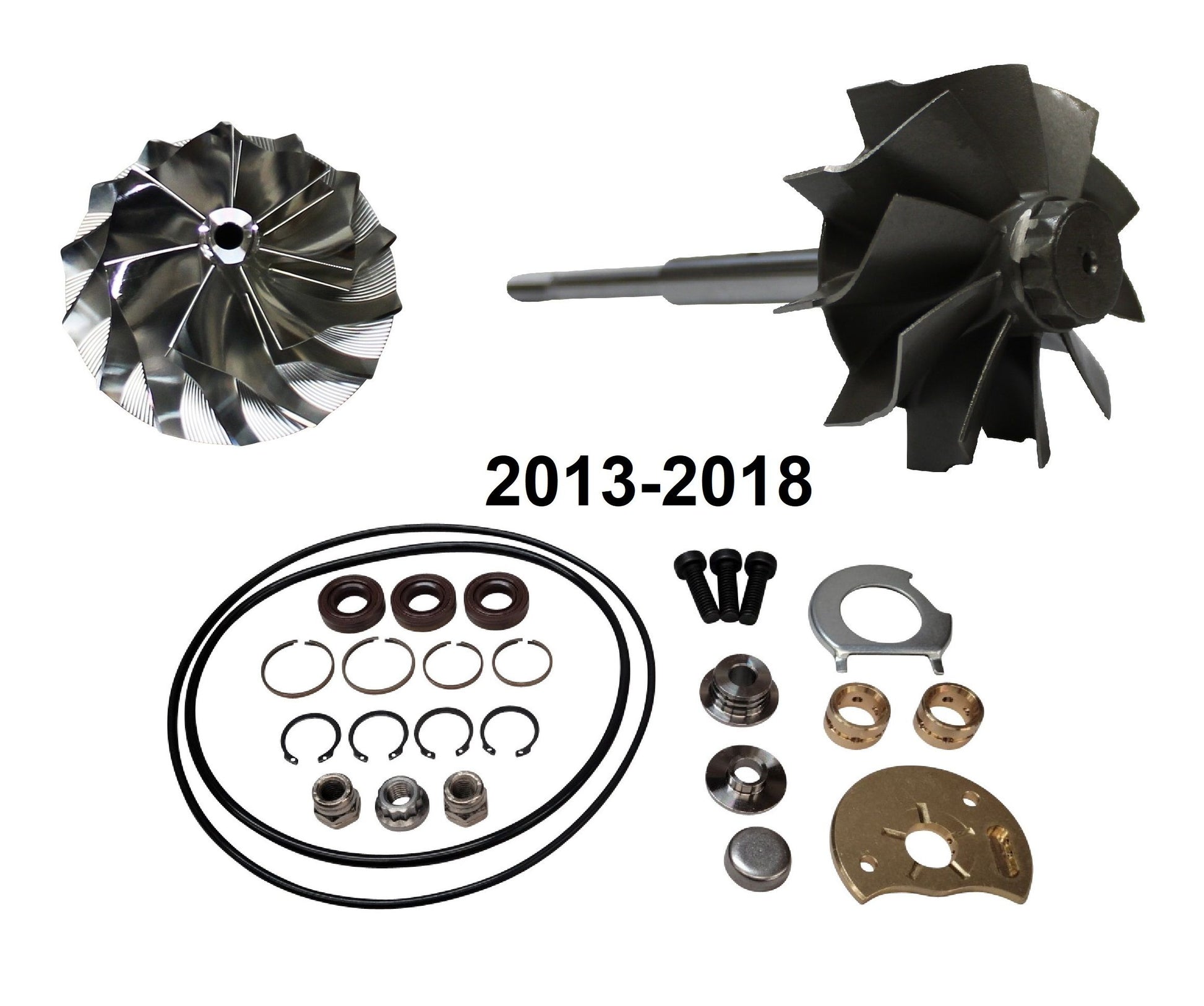

Includes:
Billet Compressor Wheel
Turbo Rebuild Kit
10 Blade Turbine Wheel
Turbo Rebuild Kit Specs:
2 - O-Rings
1 - 360° Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
2 - Journal Bearings
2- "TS1" Oversized Bearings (HE351VE Kit only)
1 - 12 Point Compressor Wheel Nut
2 - Piston Oil seals
4 - C Clips
1 - Shield
1 - Freeze Plug
3 - Cap Screw Bolts
Rubber Oil Seals
Clamp Nuts

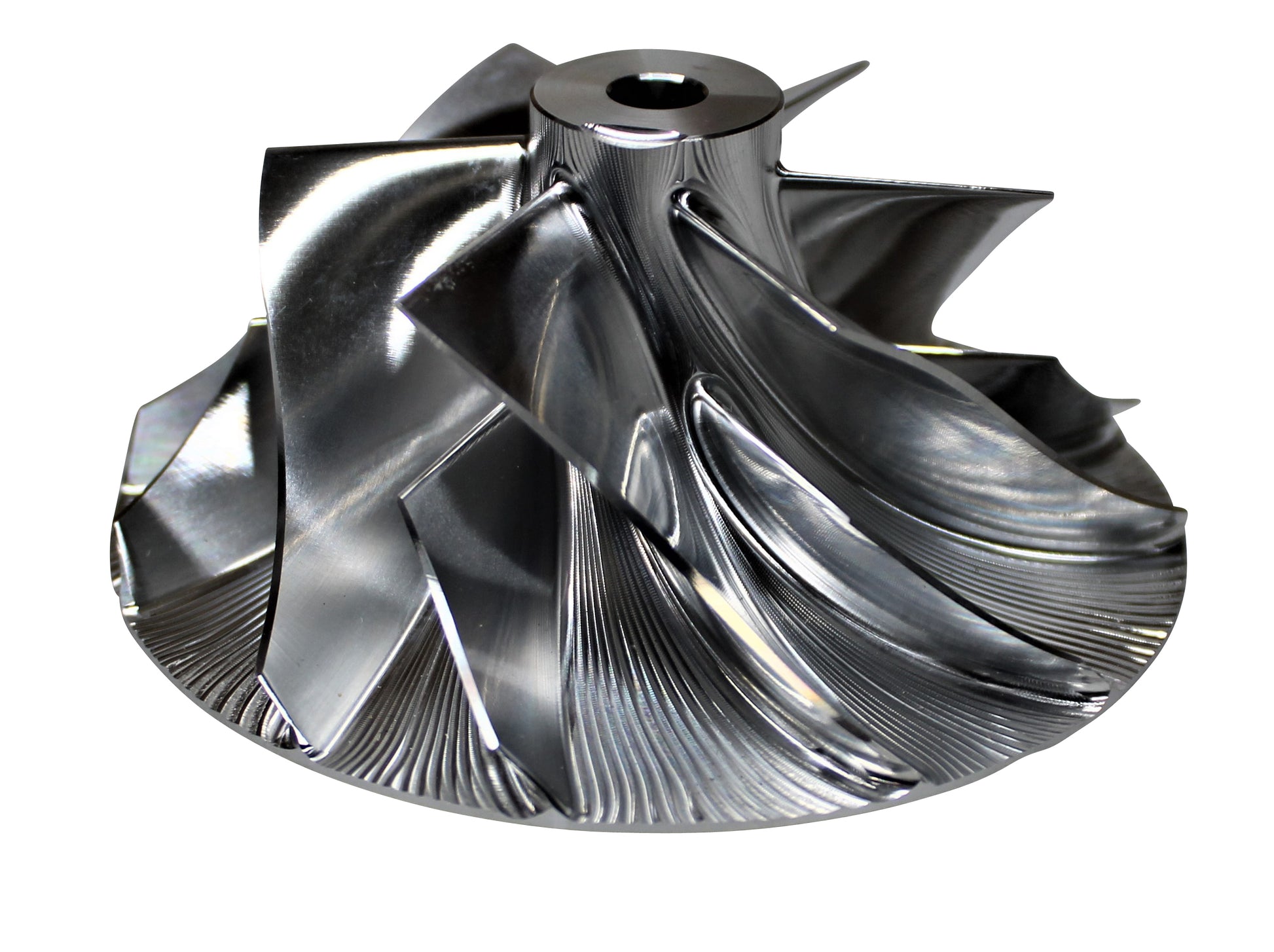

63mm Billet Compressor Specs:
Inducer: 63 mm
Exducer Base: 86 mm
Primary Tip Height: 39 mm
Secondary Tip Height: 28.5mm
Nose Width: 14.8 mm
Blades: 7/7
60mm Billet Compressor Specs
Inducer: 60 mm
Exducer Base: 86 mm
Primary Tip Height: 30.9 mm
Secondary Tip Height: 16.75 mm
Weight: 145.3 Grams
Nose Width: 18.8 mm
Blades: 6/6

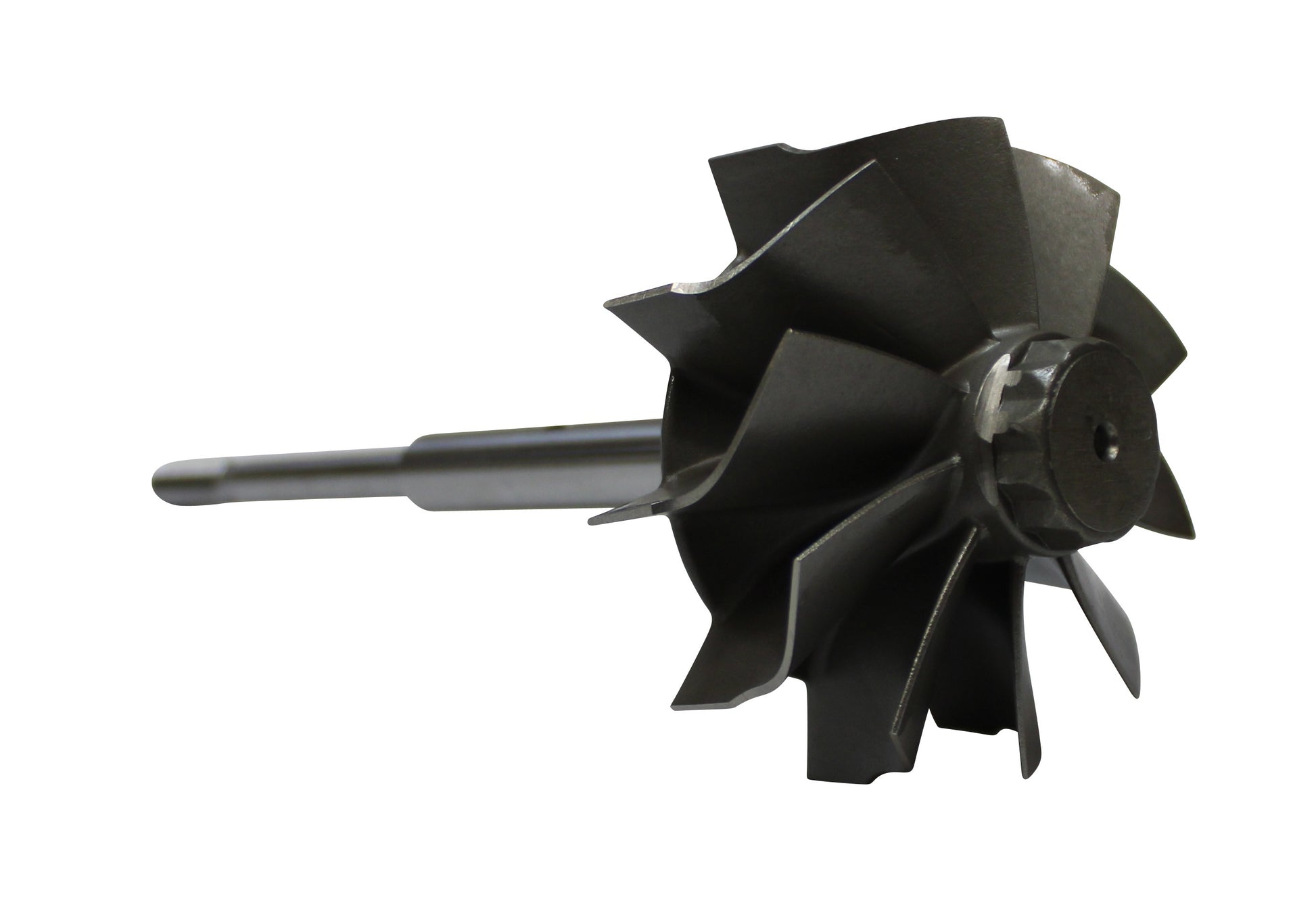

10 Blade Turbine Wheel Specs:
Drop in 10 Blade 60x70mm Turbine Wheel & Shaft
Upgraded 10 blade design
Lower EGTs
Increased flow
One Year Warranty Available, the following items will be required:
Receipts of oil supply & drain tubes replaced at time of rebuild
Balancing must be selected at time of purchase
Turbo fasteners must be torqued to specs
Fits: HE351VE HE300VG Turbos on 2007.5-2018 6.7l Cummins Diesel Applications.
Torque Specs:
HE351VE Backing/Seal Plate: 30 in-lbs
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
