KB Diesel Performance LLC
Part Number:
KB-S480-T6
Cross reference: G45-1125 DBB Turbo T4 1.01A/R TH
Regular price
$1,950.00
Sale price
$1,950.00
Regular price
Unit price
/
per
Sale
Sold out
Couldn't load pickup availability

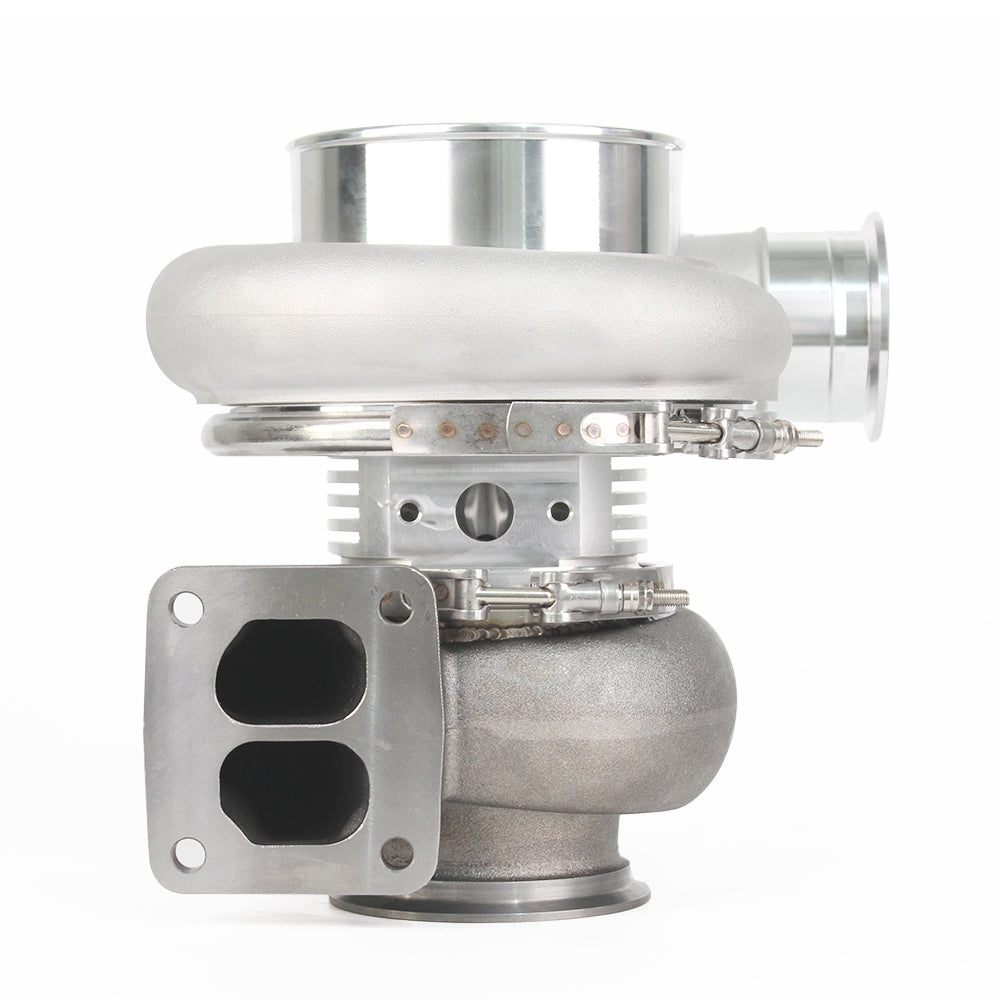

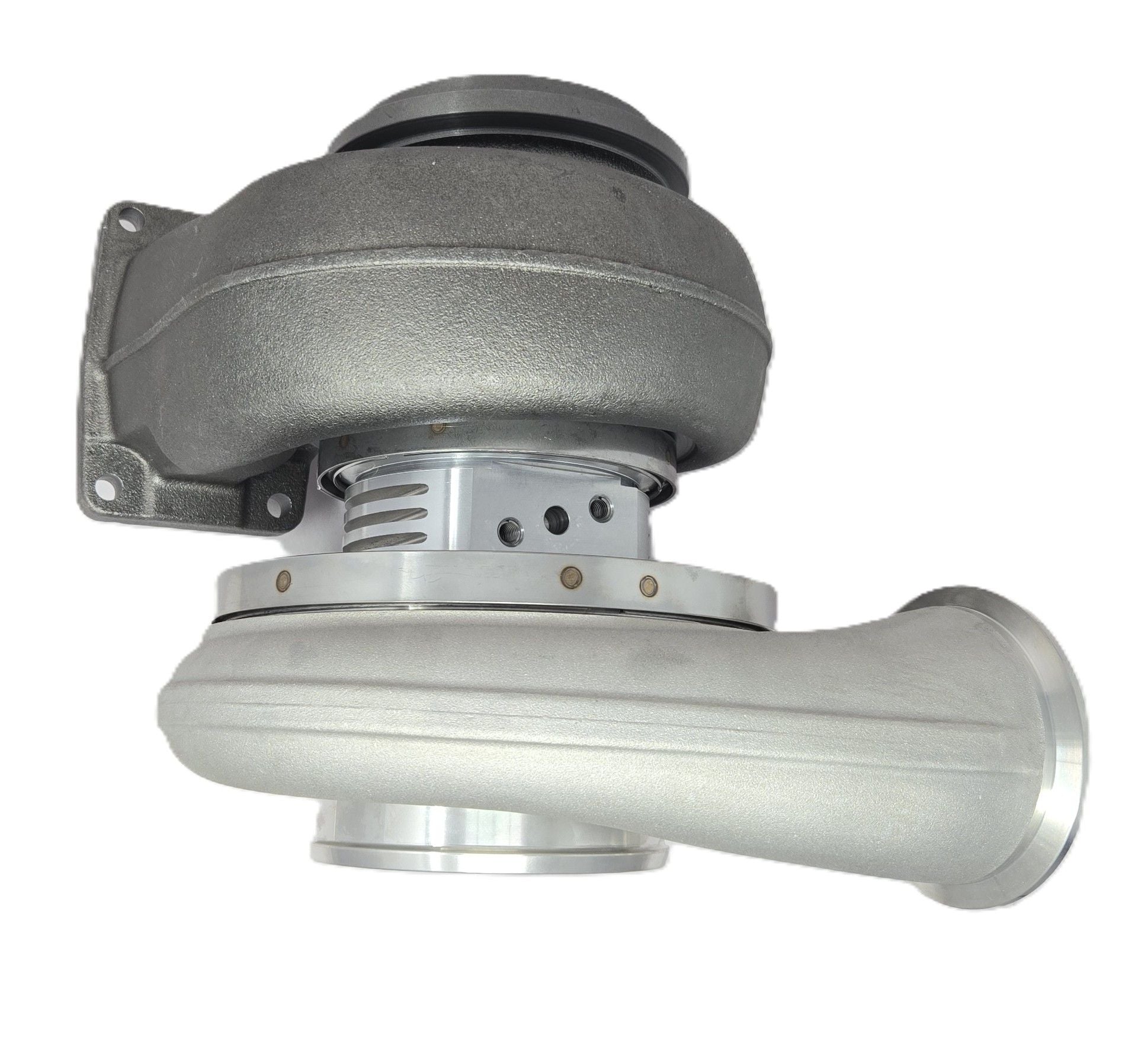

- Ideal as an atmosphere turbo for compound turbos
- Dual Ball Bearing

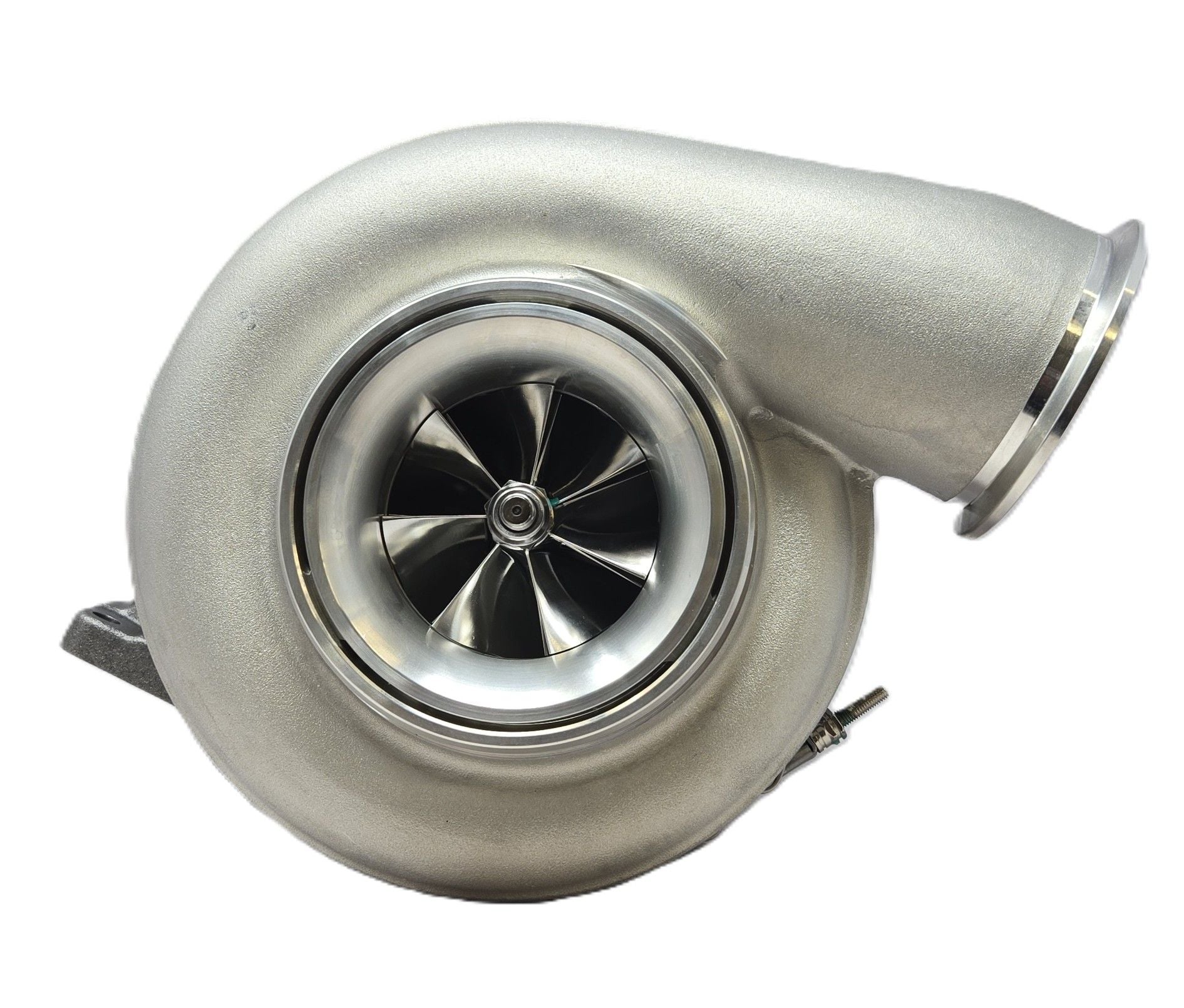

- 7+7 Blade extended tapered billet compressor wheel

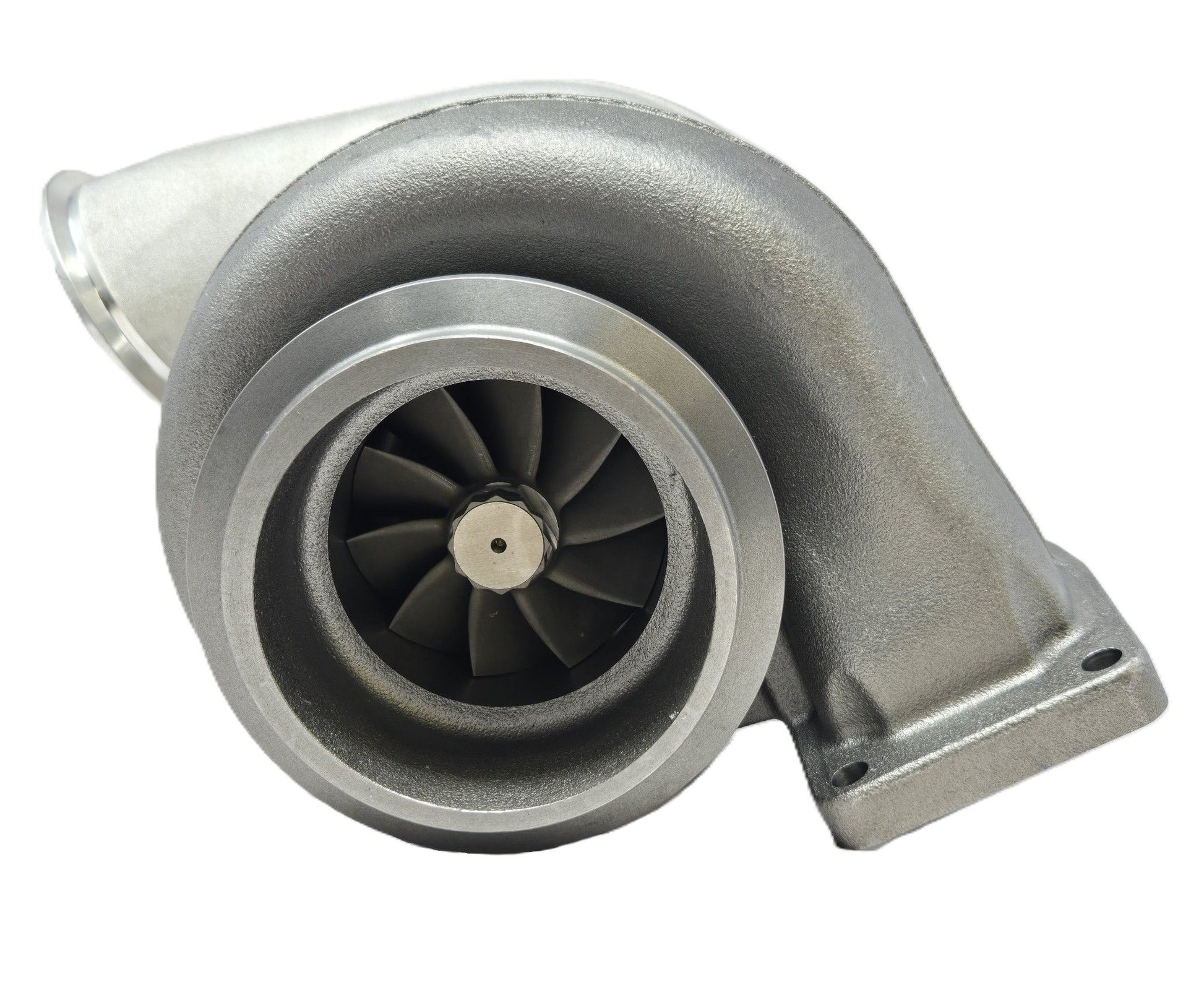

- 10 Blade Inconel turbine wheel

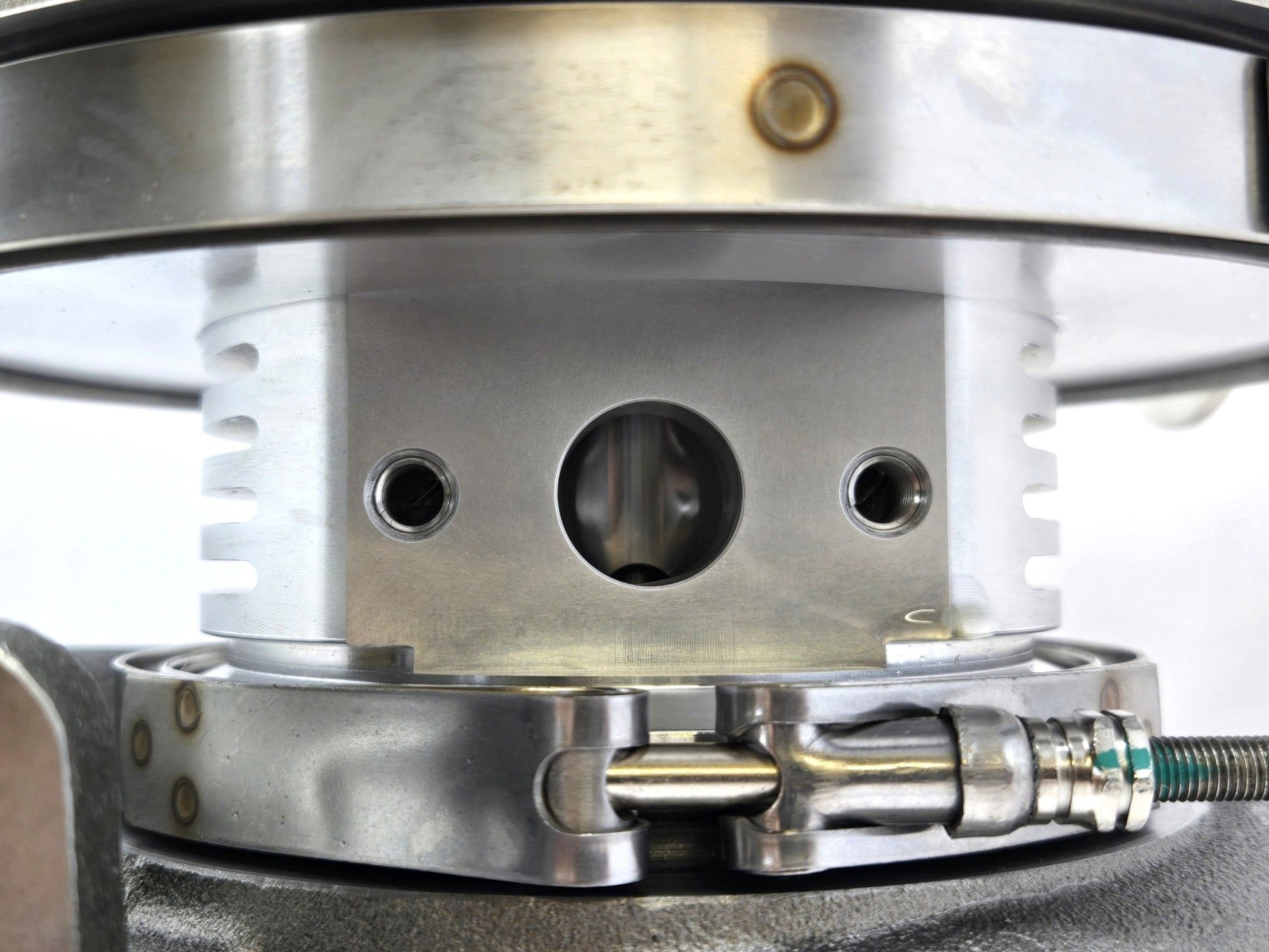

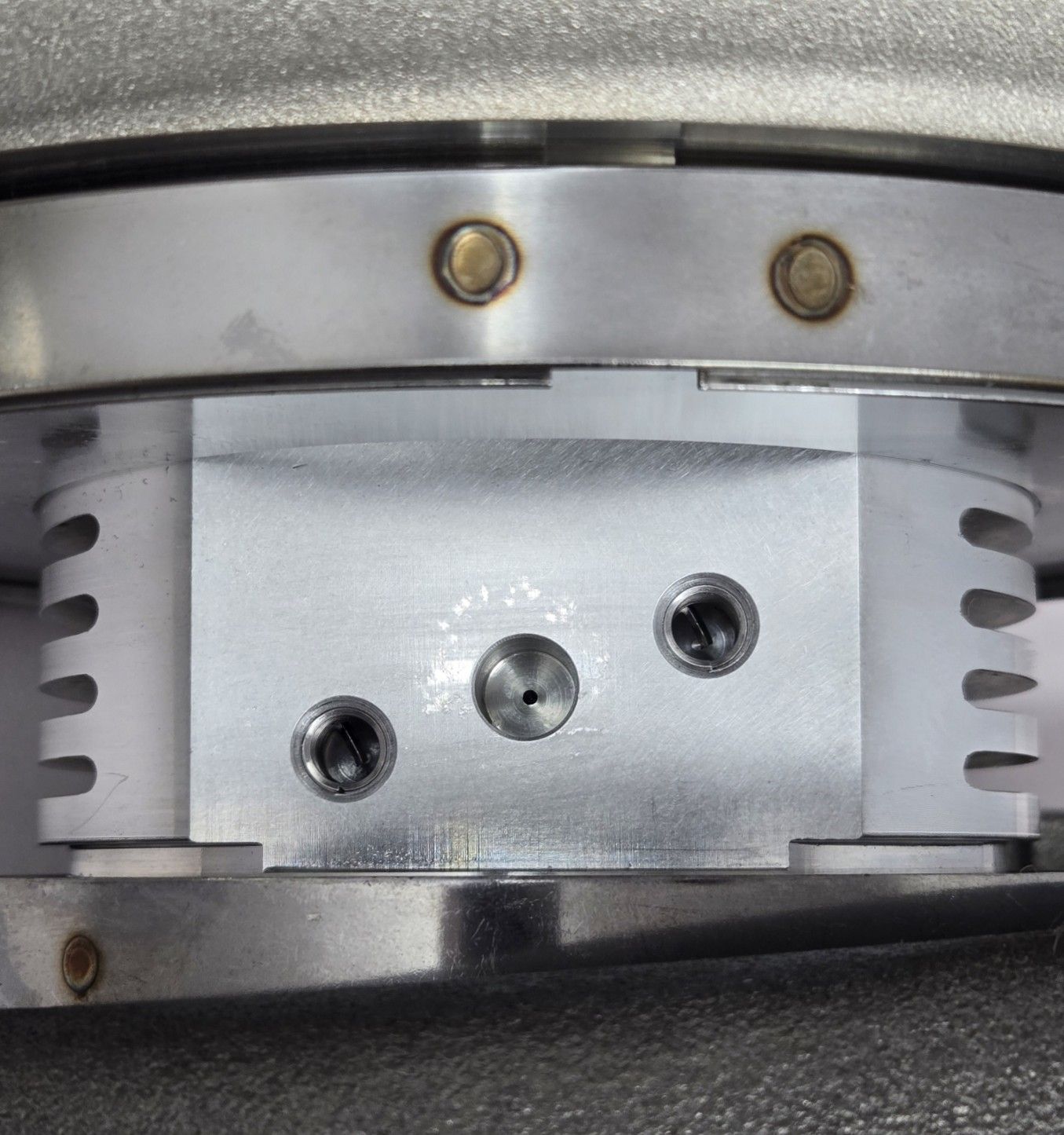

- Air Cooled Billet Bearing Housing
Specs:
Compressor Wheel: 80 x 113 mm
Compressor Housing Inlet: 5.0" OD
Compressor Housing Outlet: 4.20" OD V-Band
Turbine Wheel: 96 x 88mm
Turbine Housing: 1.32 A/R
Turbine Housing Inlet: T6 Flange
Turbine Housing Outlet: 5.75" OD Marmon Flange
Oil Inlet: 2 Bolt Flange 1.5" On Center
Oil Outlet: 2 Bolt Flange
Compare to: Borg Warner S480
