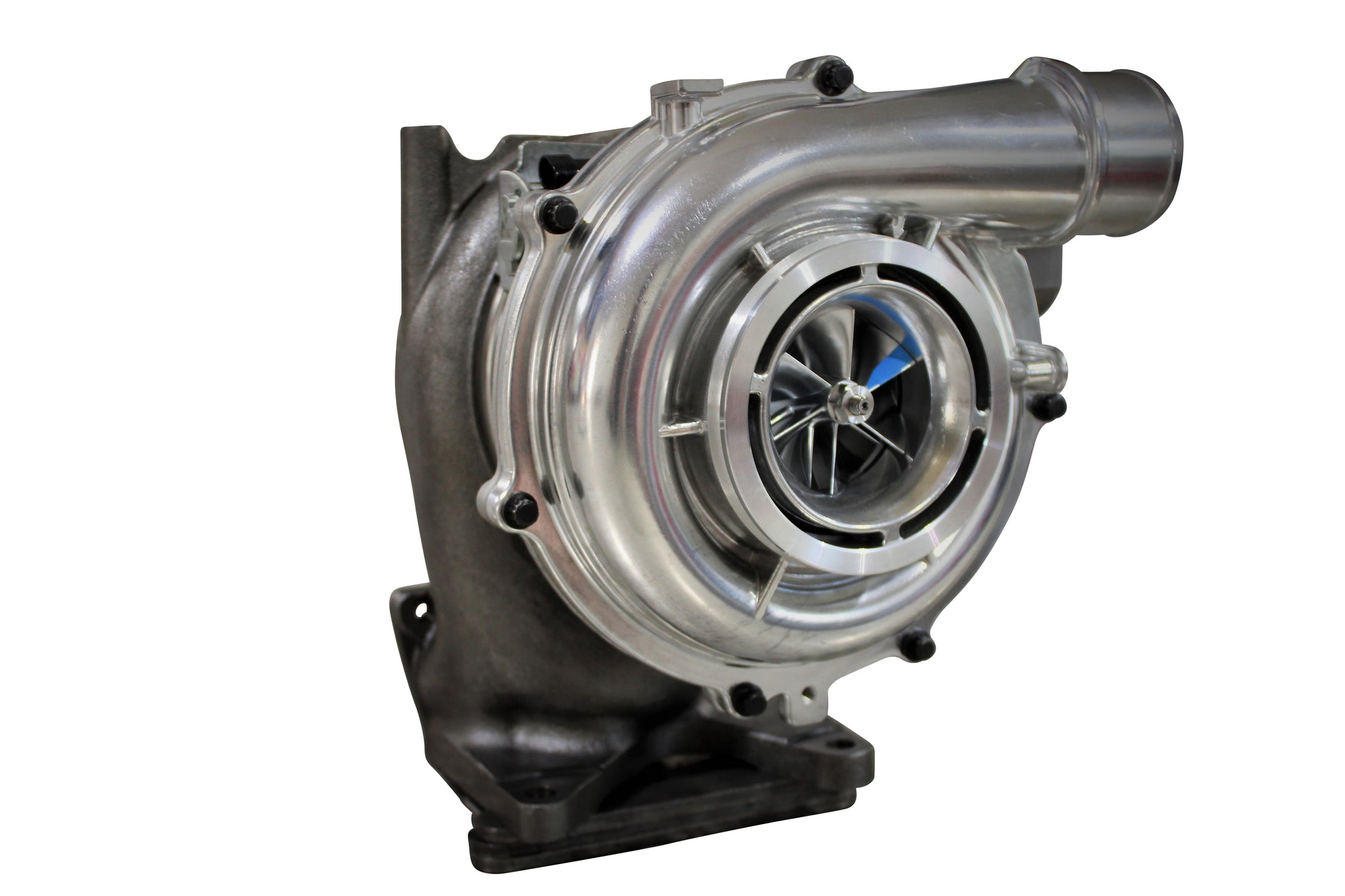

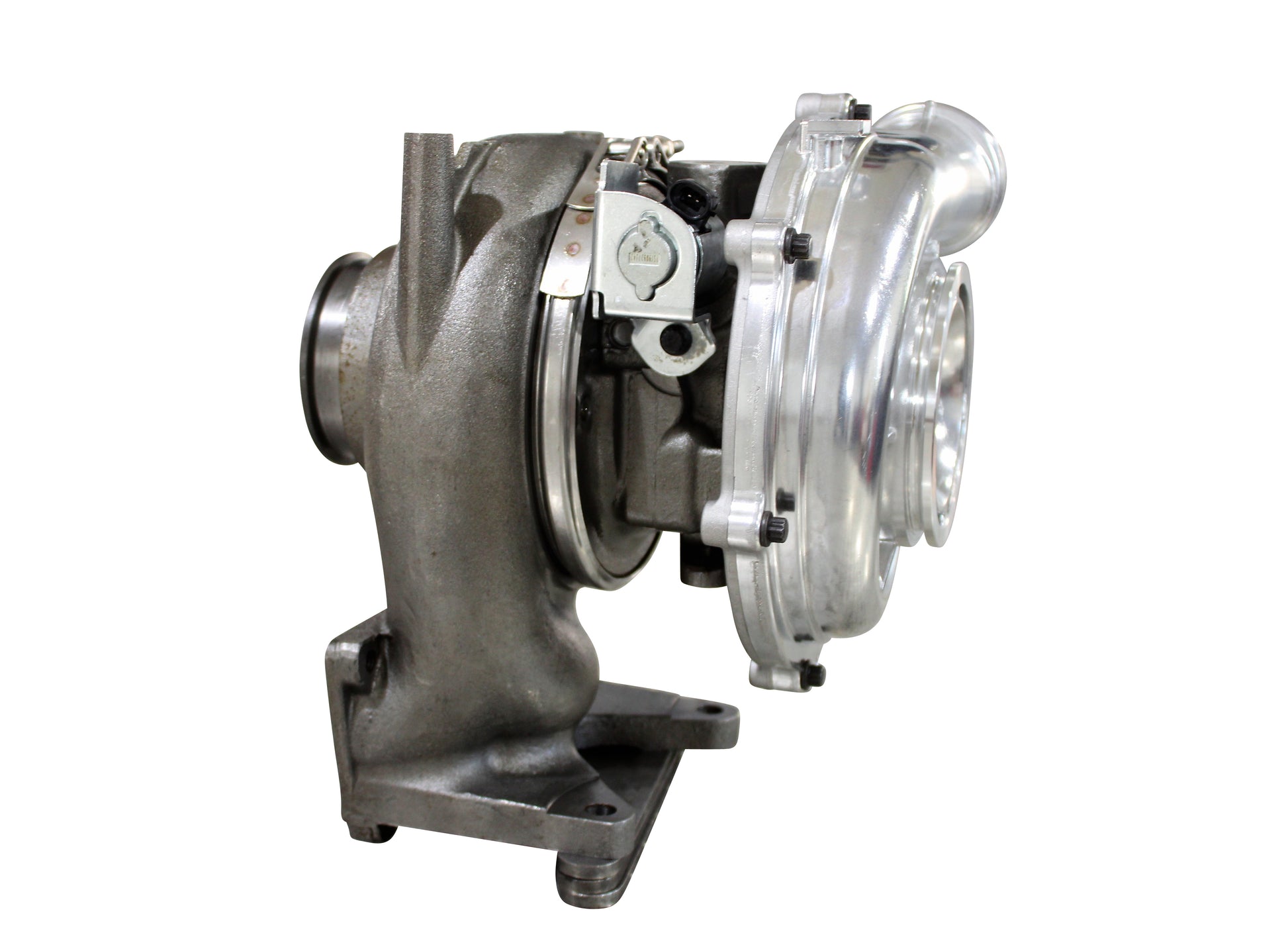

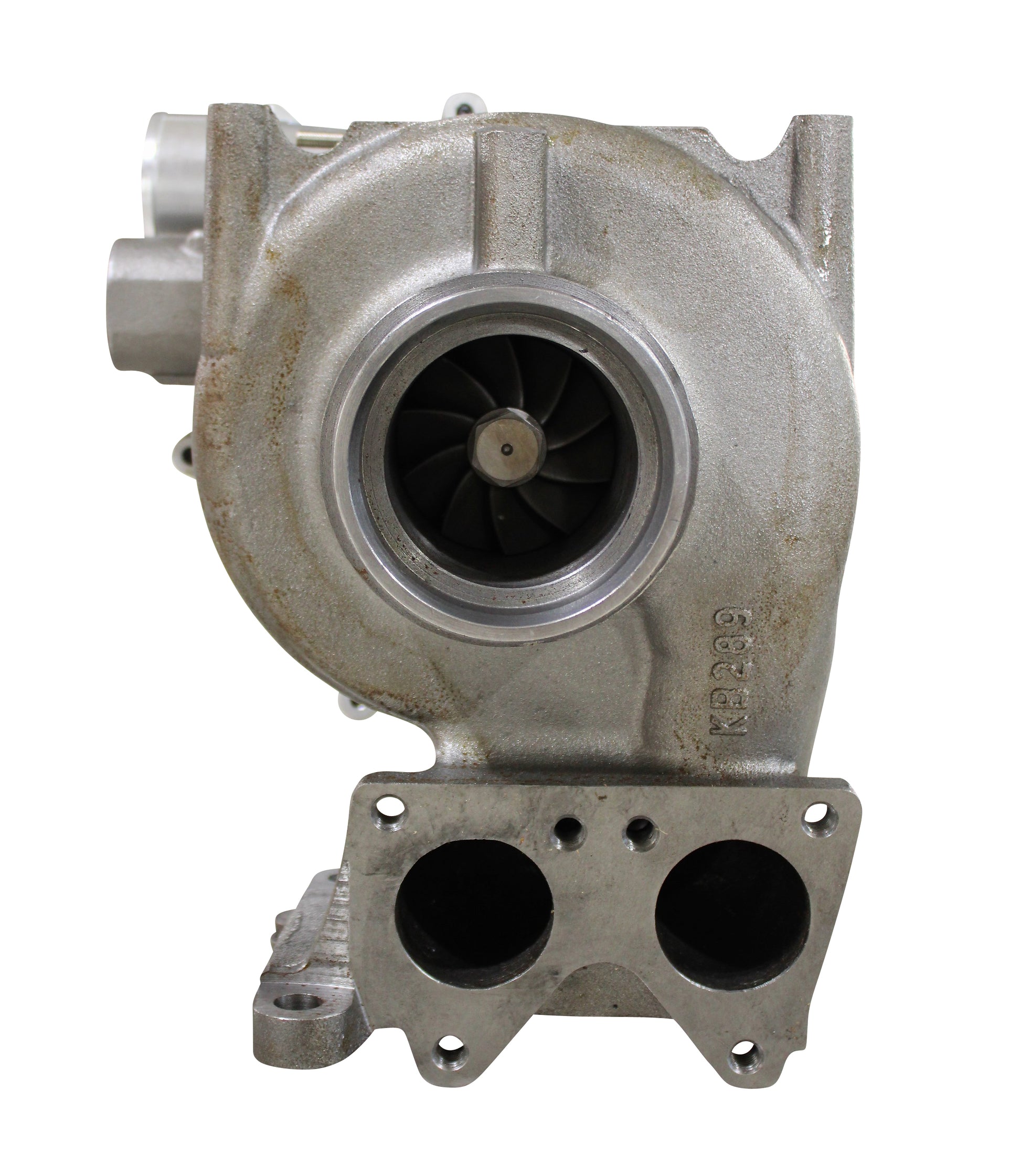

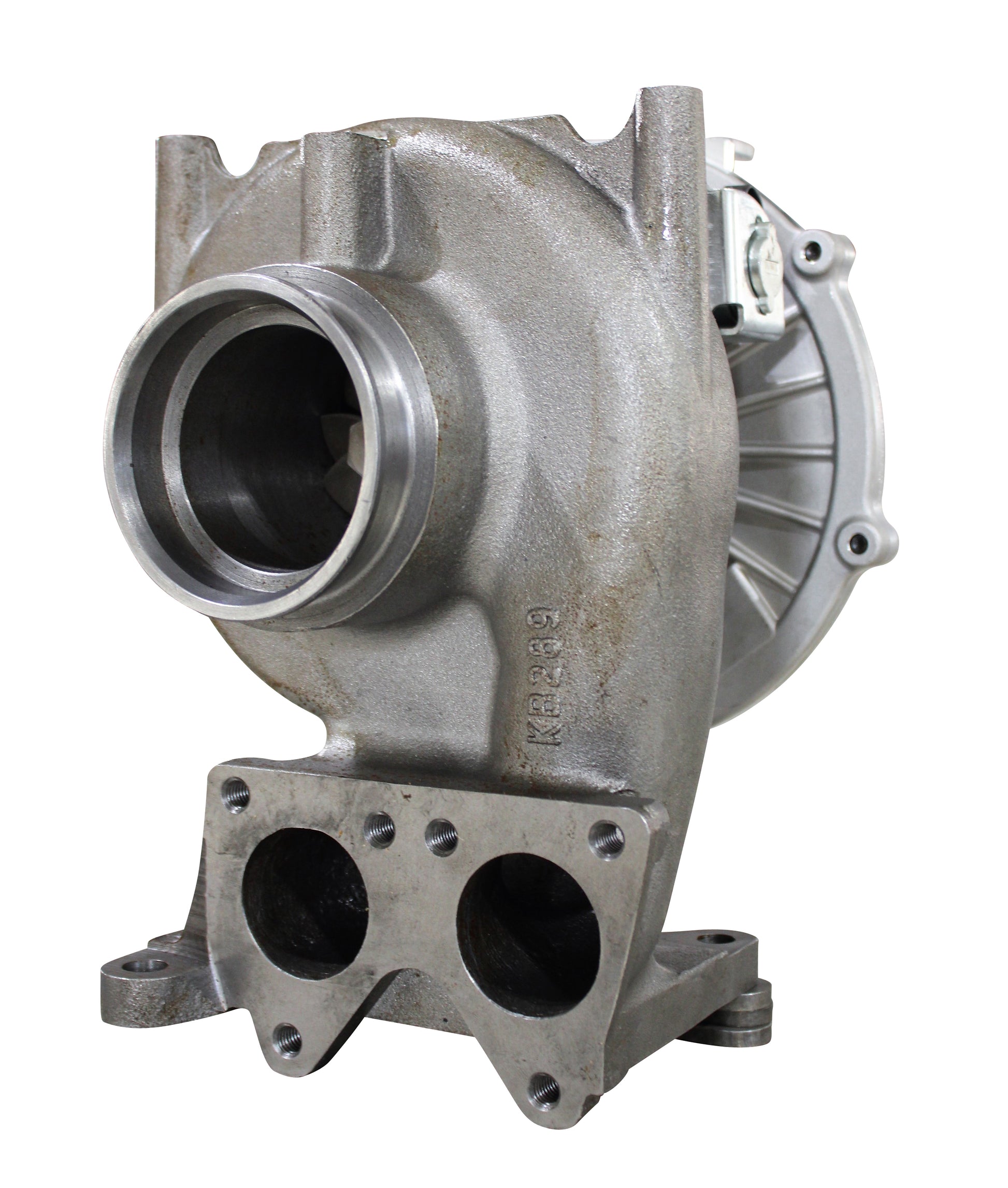

68mm Turbo for 2004.5-2010 LLY/LBZ/LMM 6.6l Duramax Chevy/GMC 2500/3500

KBDP 68mm Turbo for 6.6l LLY/LBZ/LMM engines.

Features
New rotating assembly
New VVT/VGT Solenoid
New Unison Ring
New Vanes
Built with New Castings*
7/7 Billet Wheel
HD 360° Brass Thrust Bearing
10 Blade Turbine Wheel
Balanced Assembly

Increase airflow, lower EGTs
68mm Inducer, Optimizes Airflow & Top-end Output
With proper injectors, the 68mm spool time can be very comparable to the 63.5mm with stock injectors.

Billet Compressor Specs
Inducer: 68 mm
Extended Tip: 94 mm
Primary Tip Height: 35 mm
Secondary Tip Height: 23 mm
Weight: 153 Grams
Nose Width: 14 mm Hex
Blades: 7/7
Extended Tip
Pre-balanced
Exducer Base: 88.25 mm

10-Blade Turbine Specs:
72.5mm x 66.5 mm. More top end flow without compromising spool time.
Warning: This turbine is very noisy. It will whistle loudly.

Unison Ring & Vanes Specs:
Billet Unison Ring: Made From High Temperature Tolerant 310SS
Standard Cast Vanes: Made From High Temperature Tolerant 310SS

Fits: 2004.5-2010 LLY/LBZ/LMM 6.6l Duramax engines in Chevy/GMC 2500/3500 trucks.

One Year Warranty Available. The following items will be required:
Receipts of oil supply & drain tubes replaced at time of install.

*Front cover may be OE polished or rough "powermax" style.

*We build these turbos with new castings when available. Building these with used castings is more labor intensive, so we won't do it! - Unless we run out of new castings and have no choice.
