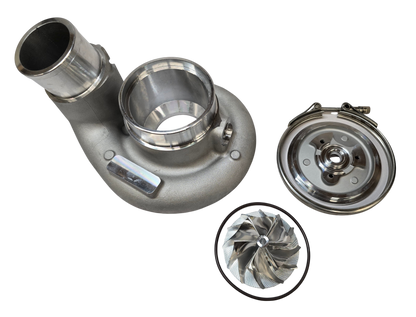

63.5mm Turbo Front Cover Kit & Wheel for 2019-2024 HE300VG Turbos 6.7l Cummins

63.5mm Turbo Front Cover Kit W/ Wheel for 2019-2024 HE300VG Turbos 6.7l Cummins

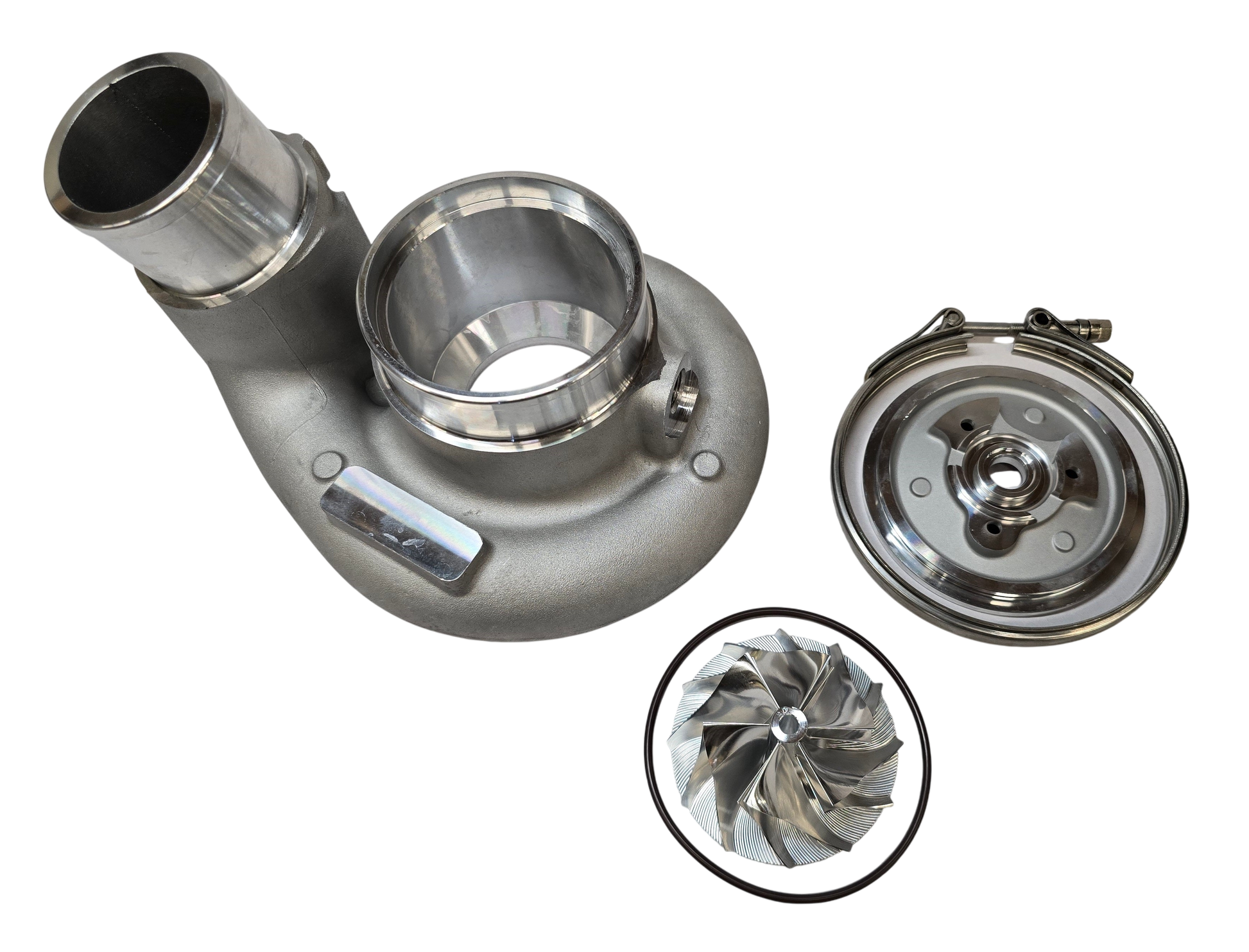

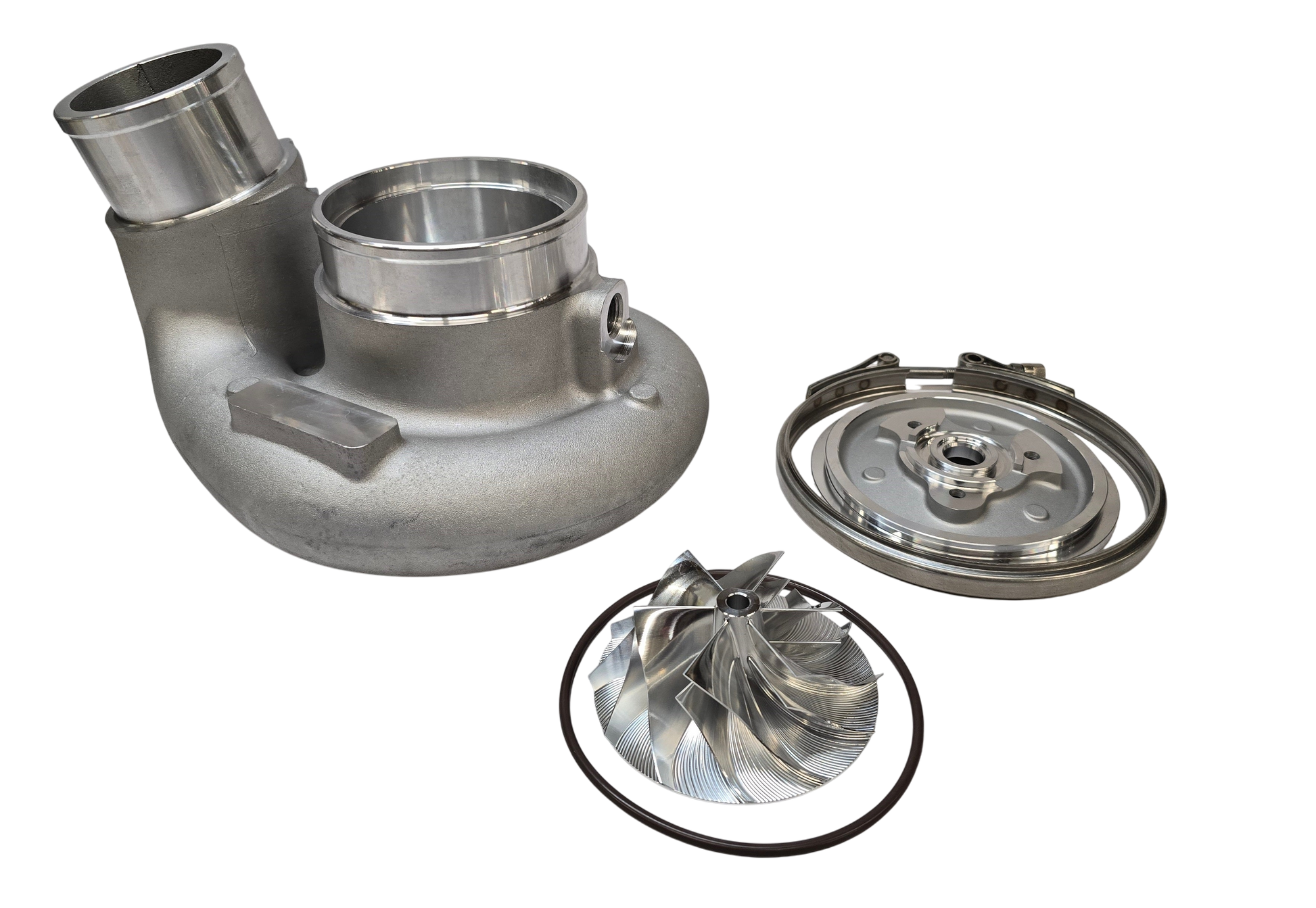

Includes:
1x 64mm Front Cover
1x 63.5mm Billet Compressor Wheel
1x Compressor Backing Plate
1x Compressor V-Band Clamp
Backing Plate Bolts
Seals

Billet Compressor Specs:
Inducer: 63.5 mm
Exducer Base: 94.1 mm
Primary Tip Height: 42 mm
Secondary Tip Height: 30mm
Nose Width: 13.6 mm
Blades: 7/7
Pre-balanced
Reinforced Blade Base
Larger Blades for Increased Flow
Increased Throttle Response

Fits: HE300VG Turbos on 2019-2024 6.7l Cummins Diesel Applications.
Note: Does not fit Cab & Chassis turbos or pre 2019 HE300VG turbos.

Torque Specs:
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
