63mm Turbo Front Cover Kit W/ Wheel for HE351VE HE300VG Turbos 6.7l Cummins

63mm Turbo Front Cover Kit W/ Wheel for HE351VE HE300VG Turbos 6.7l Cummins

Regular price $375.95
Sale price $375.95 Regular price
Sale Sold out
Shipping calculated at checkout.

63mm Turbo Front Cover Kit W/ Wheel for HE351VE HE300VG Turbos 6.7l Cummins

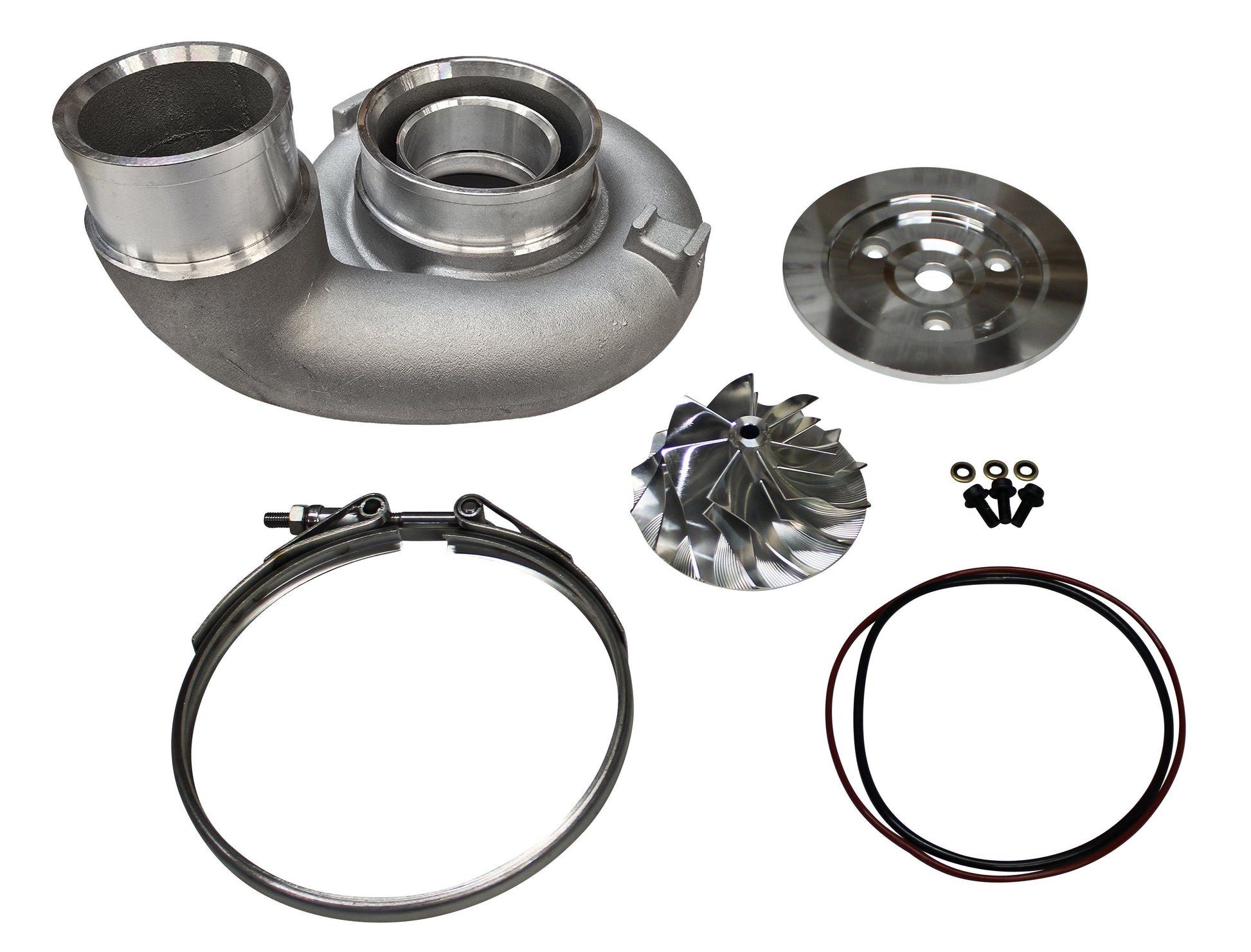

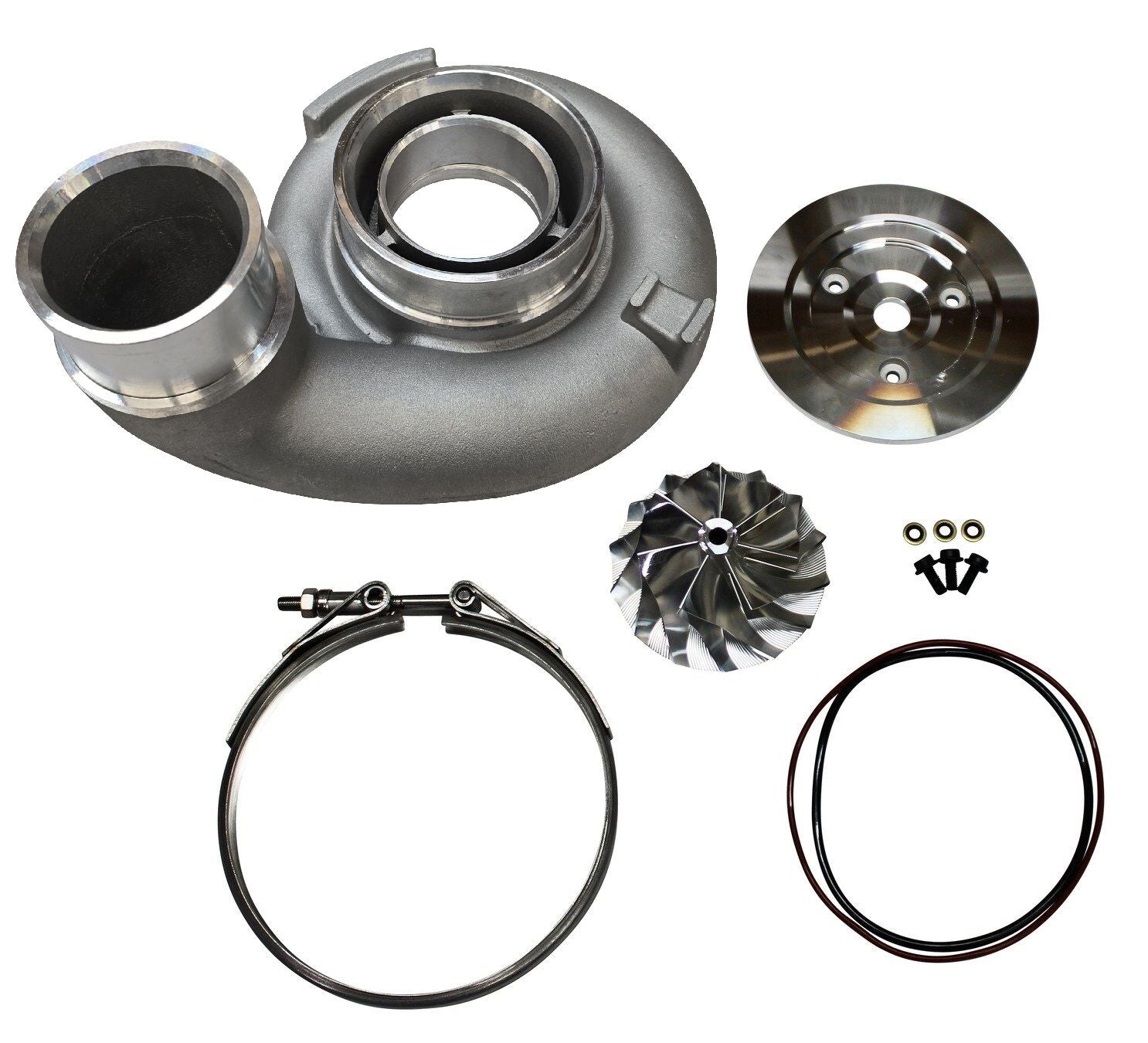

Includes:
1x 63mm Front Cover
1x 63mm Billet Compressor Wheel
1x Compressor Backing Plate
1x Compressor V-Band Clamp
Backing Plate Bolts
Seals

Billet Compressor Specs:
Inducer: 63 mm
Exducer Base: 86 mm
Primary Tip Height: 39 mm
Secondary Tip Height: 28.5mm
Nose Width: 14.8 mm
Blades: 7/7
Pre-balanced
Reinforced Blade Base
Larger Blades for Increased Flow
Increased Throttle Response

Fits: HE351VE HE300VG Turbos on 2007.5-2018 6.7l Cummins Diesel Applications.
Notes:
Does not fit Cab & Chassis HE300VG Turbos
OE back plate may need to be reused on HE300VG's depending on what style HE300VG you have.

Torque Specs:
HE351VE Backing/Seal Plate: 30 in-lbs
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
