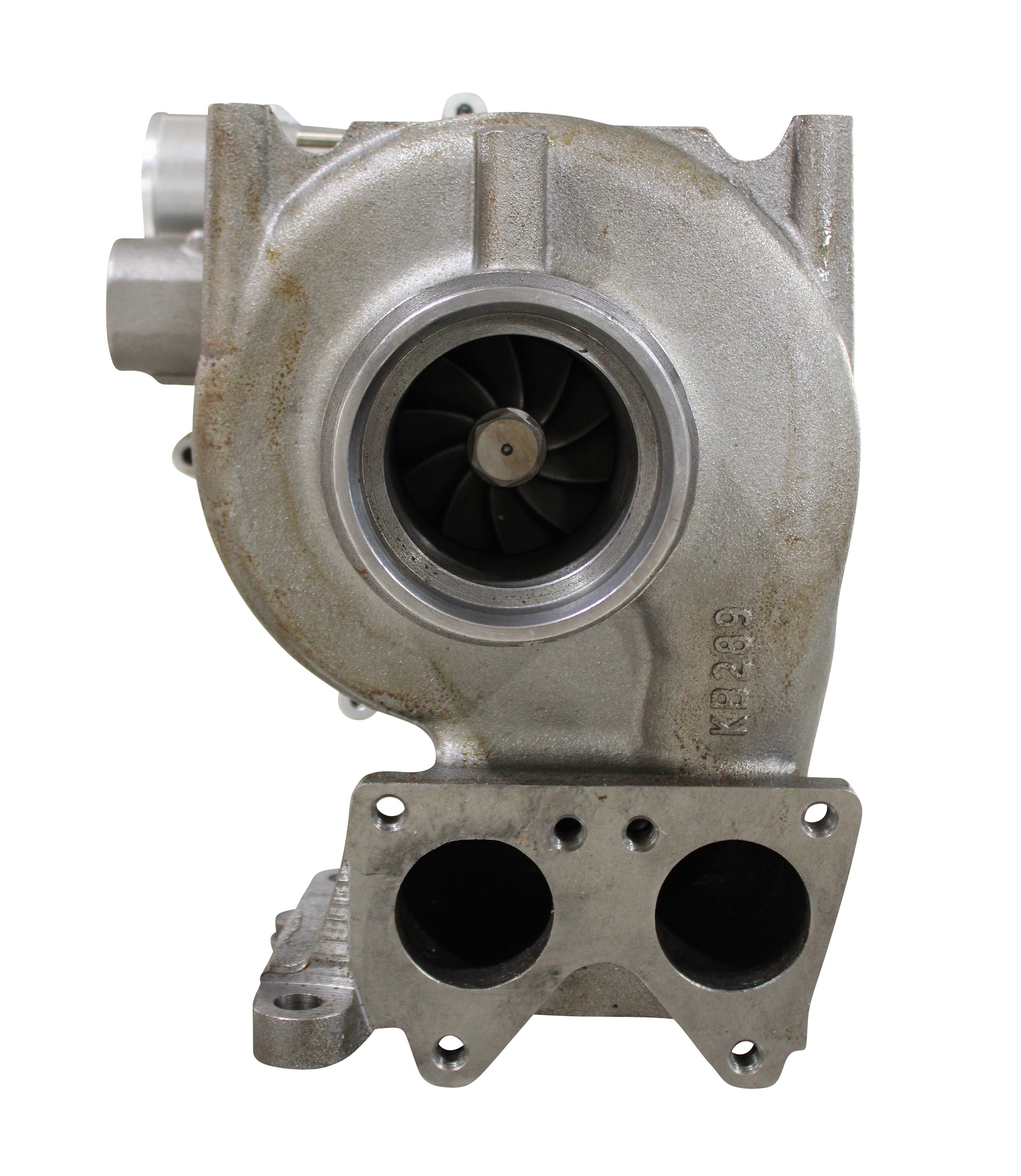

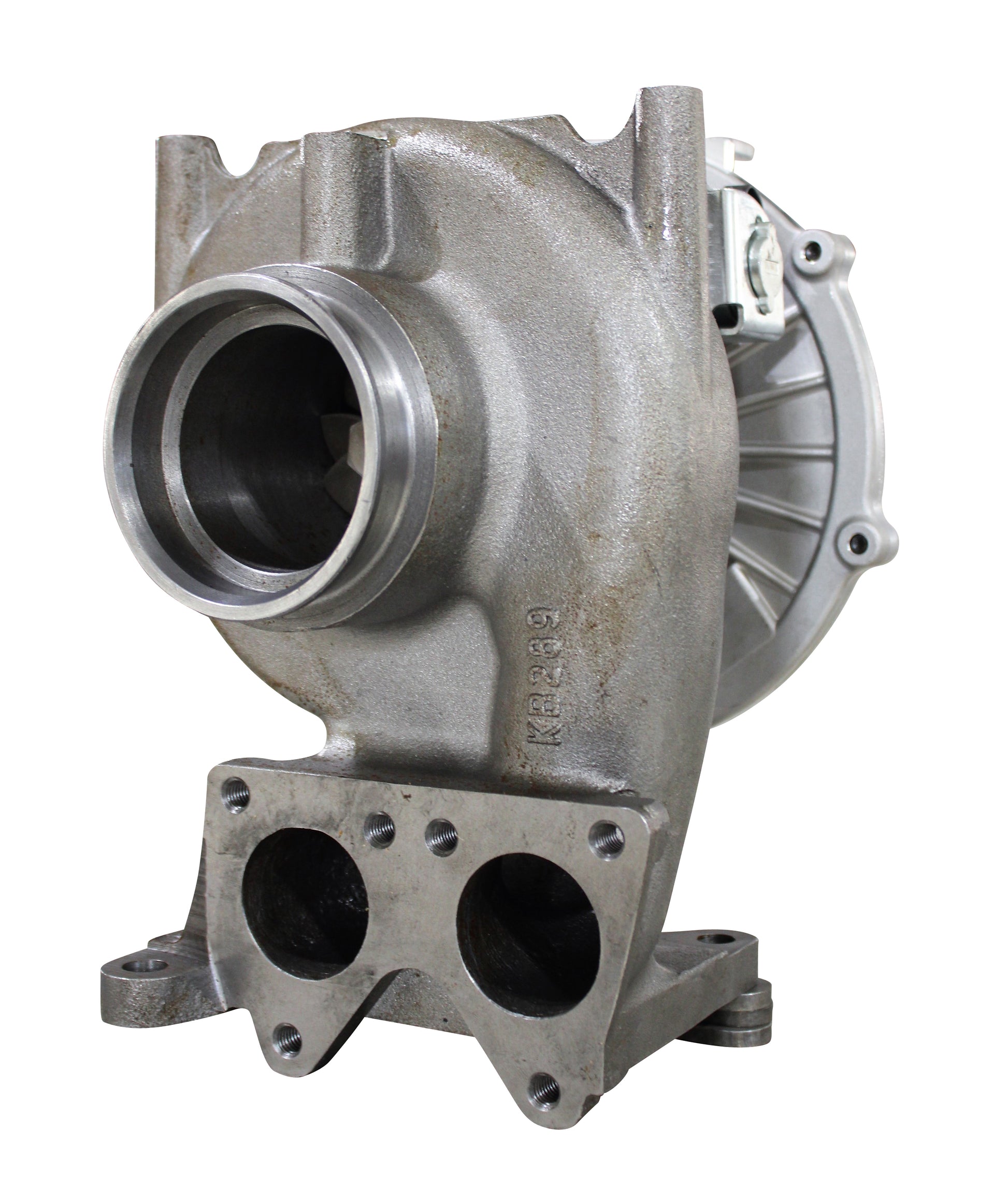

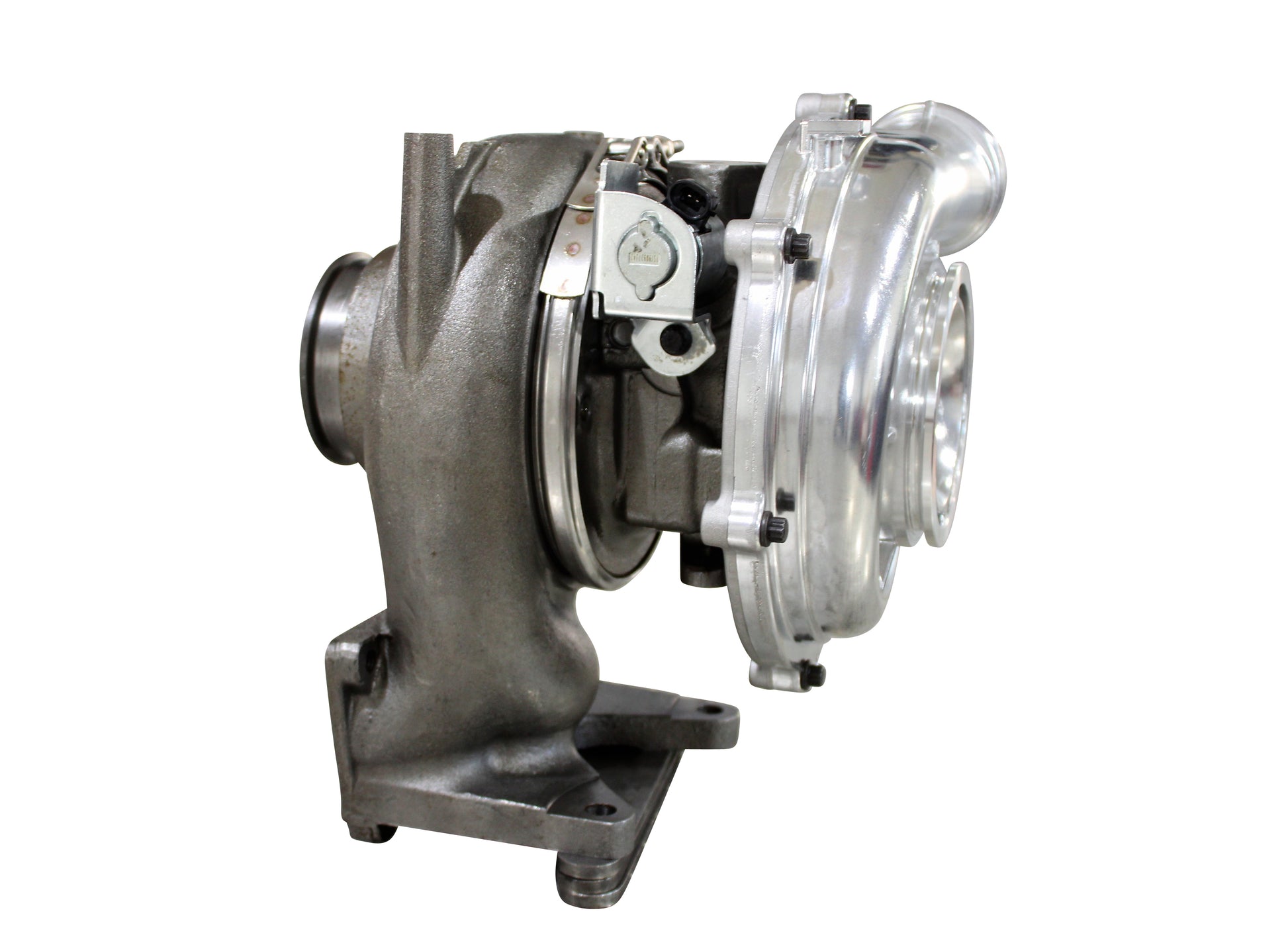

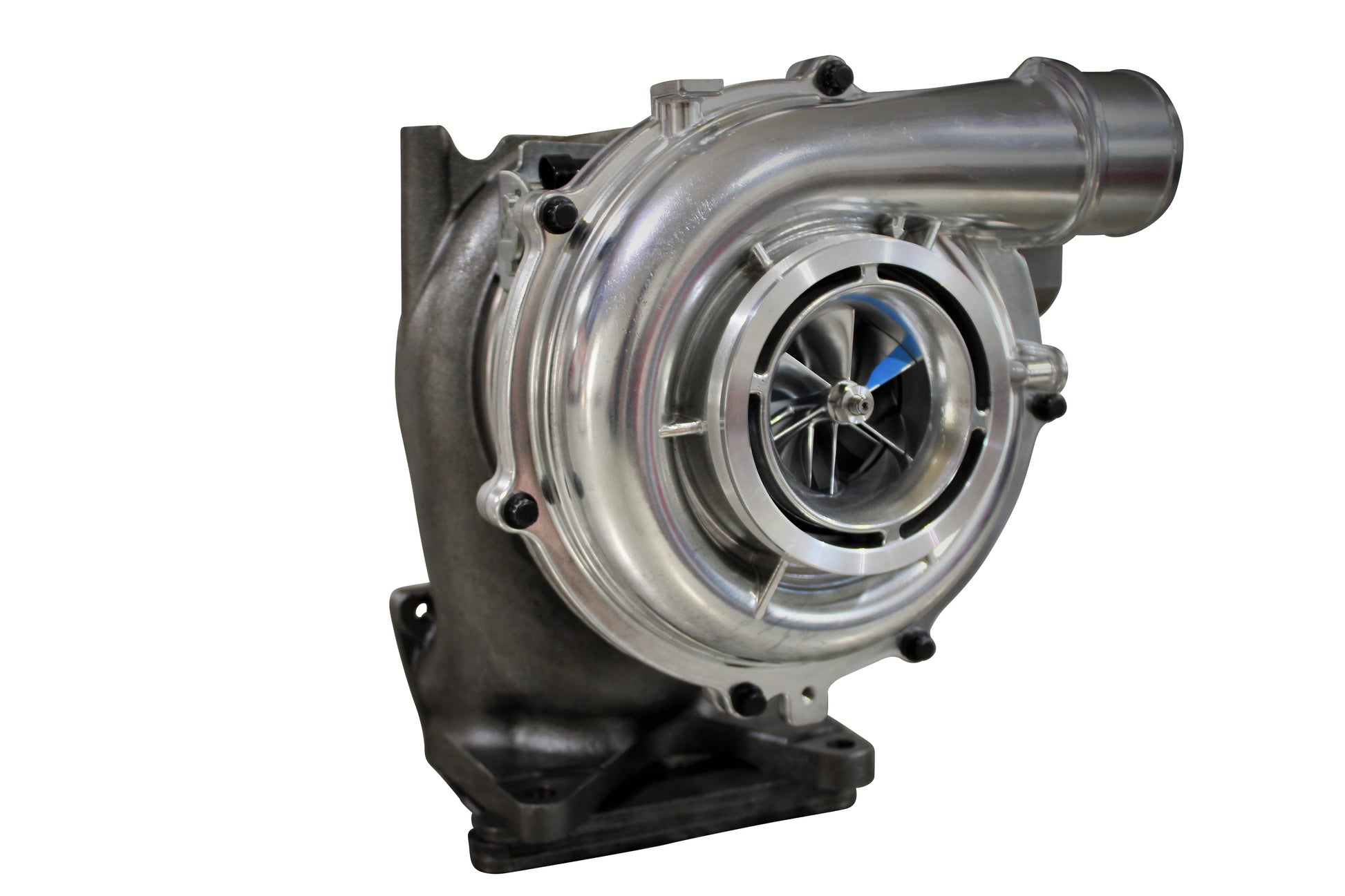

63.5mm Turbo for 2004.5-2010 LLY/LBZ/LMM 6.6l Duramax Chevy/GMC 2500/3500

KBDP 63.5mm Turbo for 6.6l LLY/LBZ/LMM engines.

Features
New rotating assembly
New VVT/VGT Solenoid
New Unison Ring
New Vanes
Built with New Castings
6/6 Billet Wheel
HD 360° Brass Thrust Bearing
10 Blade Turbine Wheel
Balanced Assembly

Increase airflow, lower EGTs
63.5mm Inducer, Optimizes Airflow & Top-end Output
On a LBZ & LMM tuning adjustments may be needed to help retain spool time due to the wheel size differences

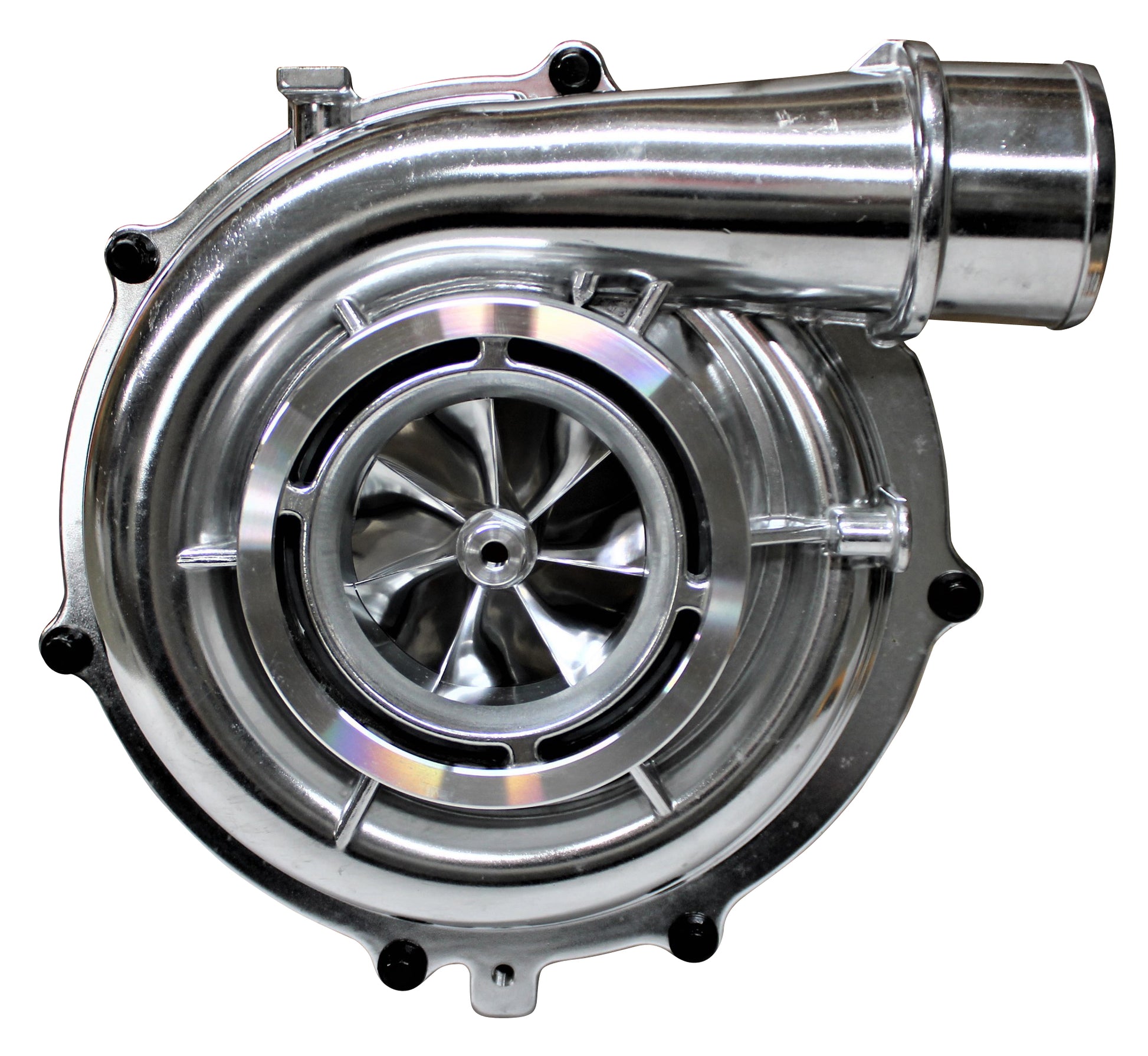

Billet Compressor Specs
Inducer: 63.4 mm
Exducer Base: 88.2 mm
Extended Tip: 94 mm
Primary Tip Height: 42 mm
Secondary Tip Height: 30 mm
Weight: 142 Grams
Nose Width: 14 mm Hex
Blades: 6/6
Extended Tip
Pre-balanced

10-Blade Turbine Specs:
72.5mm x 66.5 mm. More top end flow without compromising spool time.
Warning: This turbine is very noisy. It will whistle loudly.

Unison Ring & Vanes Specs:
Billet Unison Ring: Made From High Temperature Tolerant 310SS
Standard Cast Vanes: Made From High Temperature Tolerant 310SS

Fits: 2004.5-2010 LLY/LBZ/LMM 6.6l Duramax engines in Chevy/GMC 2500/3500 trucks.

One Year Warranty Available. The following items will be required:
Receipts of oil supply & drain tubes replaced at time of install.

*Front cover may be OE polished or rough "powermax" style.
