63.5mm Turbo Rebuild Kit for 2019-2024 HE300VG Turbos 6.7l Cummins

63.5mm Turbo Kit W/ Wheel for 2019-2024 HE300VG Turbos 6.7l Cummins

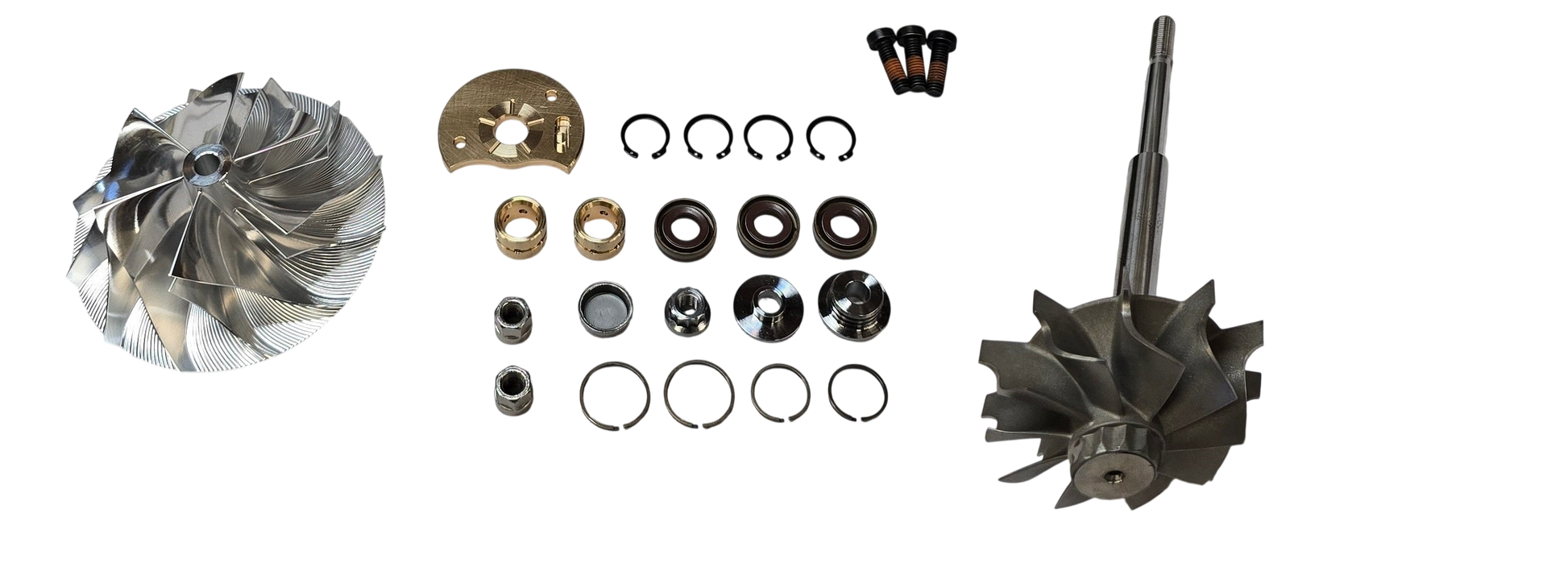

Includes:
1x 63.5mm Billet Compressor Wheel*
1x Compressor V-Band Clamp
Backing Plate Bolts

Turbo Rebuild Kit
10 Blade Turbine Wheel

*REQUIRES MACHINING OF FRONT COVER

Turbo Rebuild Kit Specs:
2 - O-Rings
1 - 360° Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
2 - Journal Bearings
2- "TS1" Oversized Bearings (HE351VE Kit only)
1 - 12 Point Compressor Wheel Nut
2 - Piston Oil seals
4 - C Clips
1 - Shield
1 - Freeze Plug
3 - Cap Screw Bolts
Rubber Oil Seals
Clamp Nuts

Billet Compressor Specs:
Inducer: 63.5 mm
Exducer Base: 86 mm
Primary Tip Height: 39 mm
Secondary Tip Height: 28.5mm
Nose Width: 14.8 mm
Blades: 7/7
Pre-balanced
Reinforced Blade Base
Larger Blades for Increased Flow
Increased Throttle Response

10 Blade Turbine Wheel Specs:
Drop in 10 Blade 60x70mm Turbine Wheel & Shaft
Upgraded 10 blade design
Lower EGTs
Increased flow

One Year Warranty Available, the following items will be required:
Receipts of oil supply & drain tubes replaced at time of rebuild
Balancing must be selected at time of purchase
Turbo fasteners must be torqued to specs

Fits: HE300VG Turbos on 2019-2024 6.7l Cummins Diesel Applications.
Note: Does not fit Cab & Chassis turbos or pre 2019 HE300VG turbos.

Torque Specs:
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
