KB Diesel Performance LLC

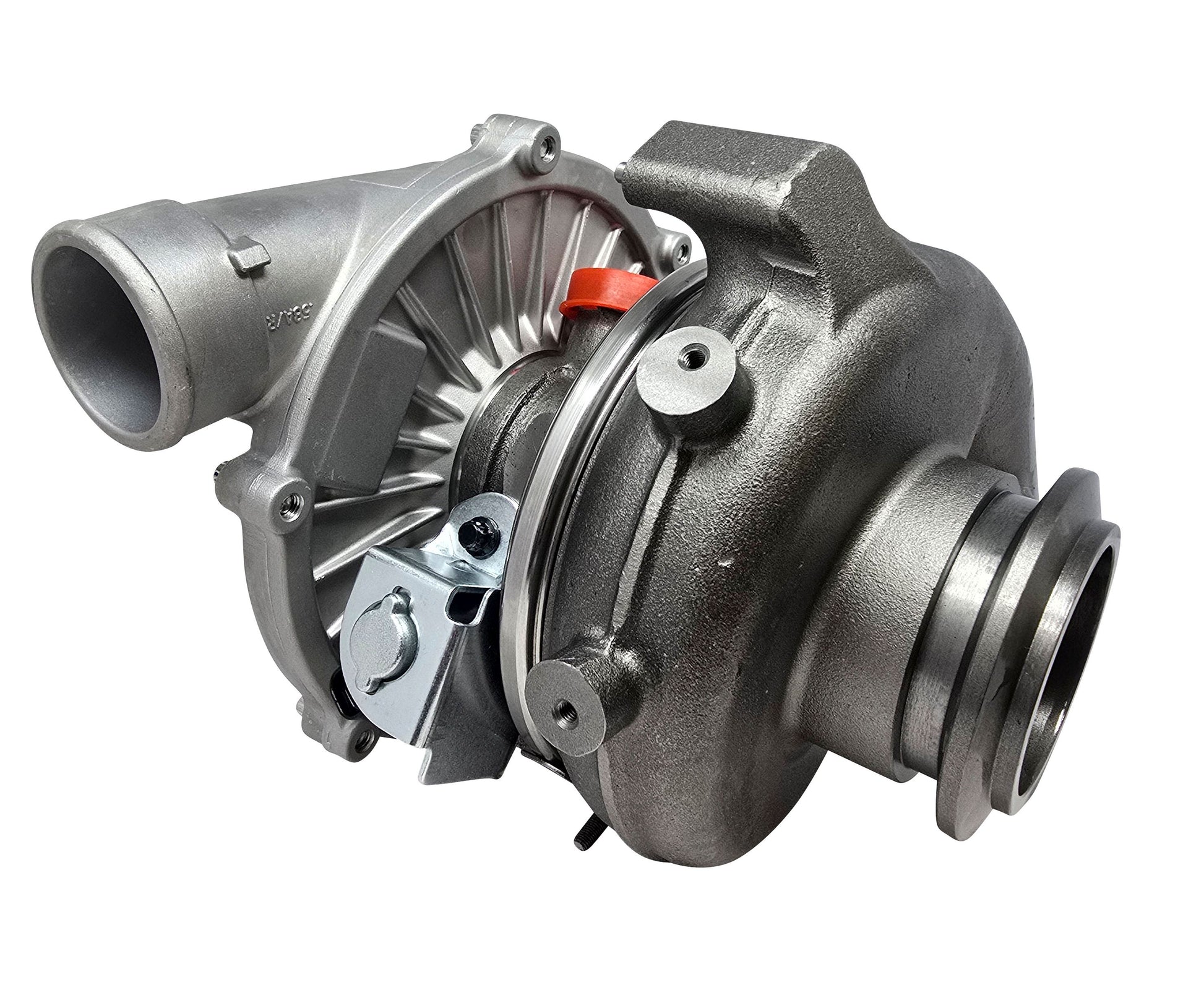

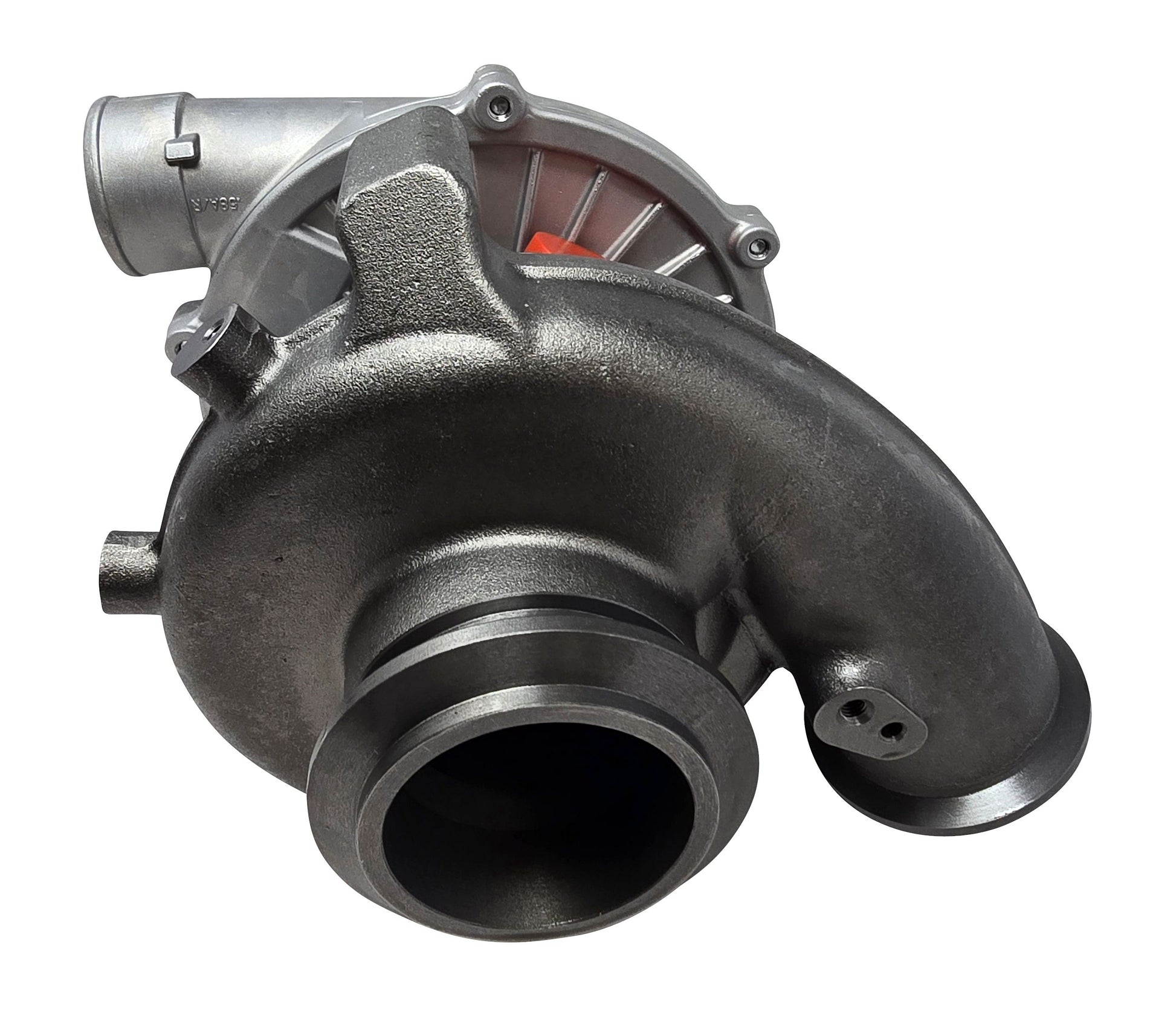

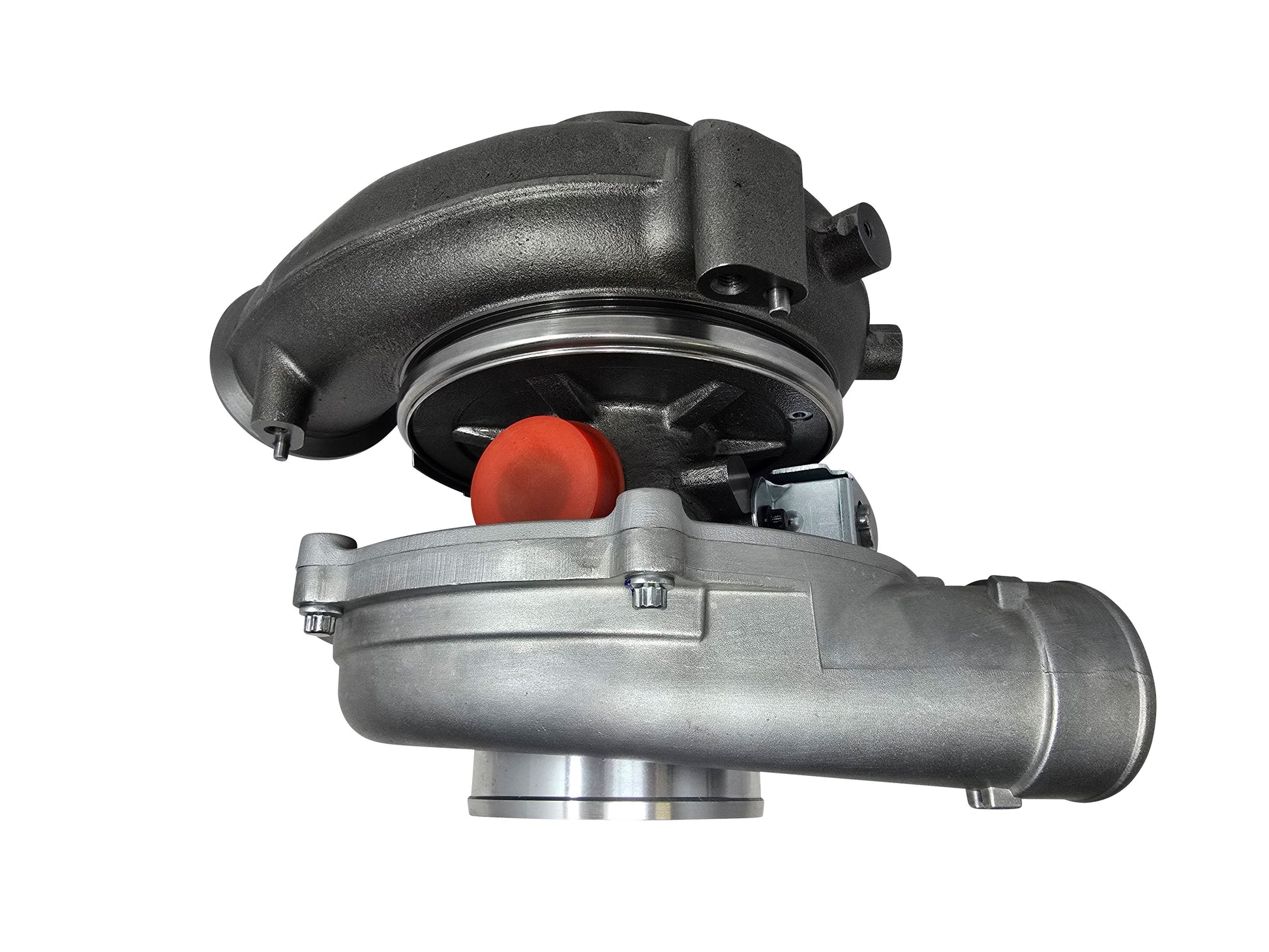

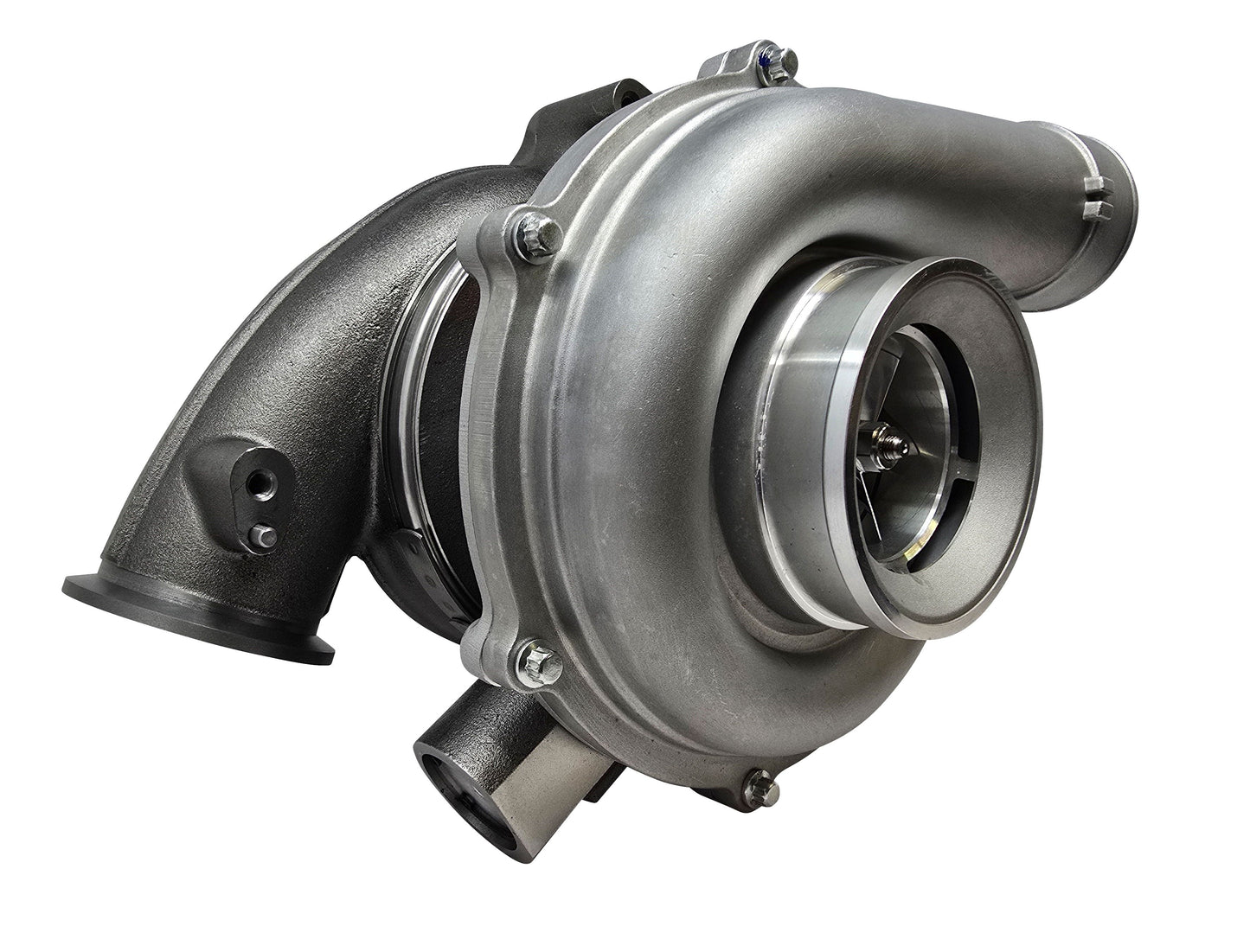

63.5mm Complete Turbo for 6.0l 2003-2007 Ford Powerstroke

63.5mm Complete Turbo for 6.0l 2003-2007 Ford Powerstroke

Regular price $1,100.00
Sale price $1,100.00 Regular price
Sale Sold out
Shipping calculated at checkout.
Color

63.5mm Complete Turbo for 6.0l 2003-2007 Ford Powerstroke

Features:

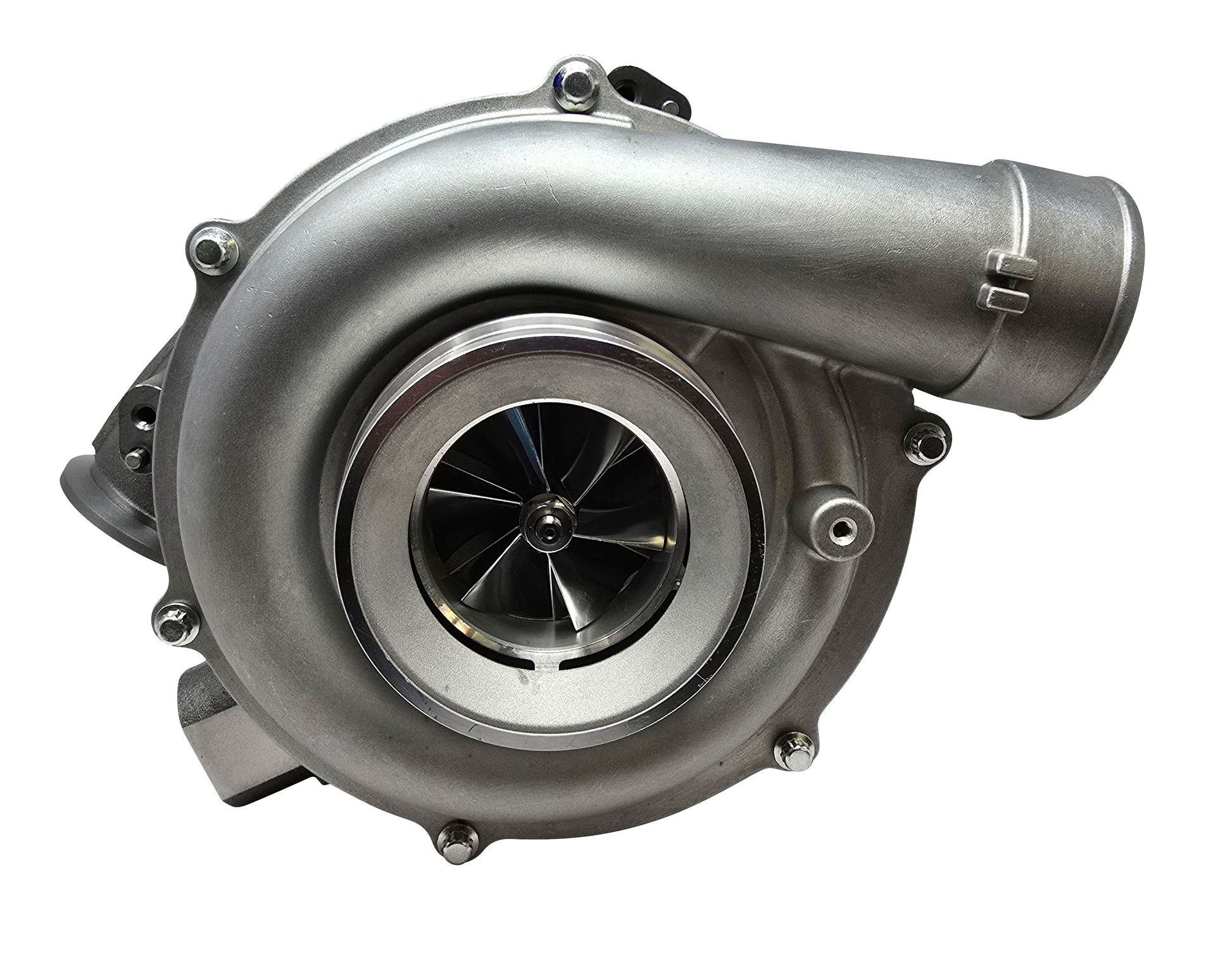

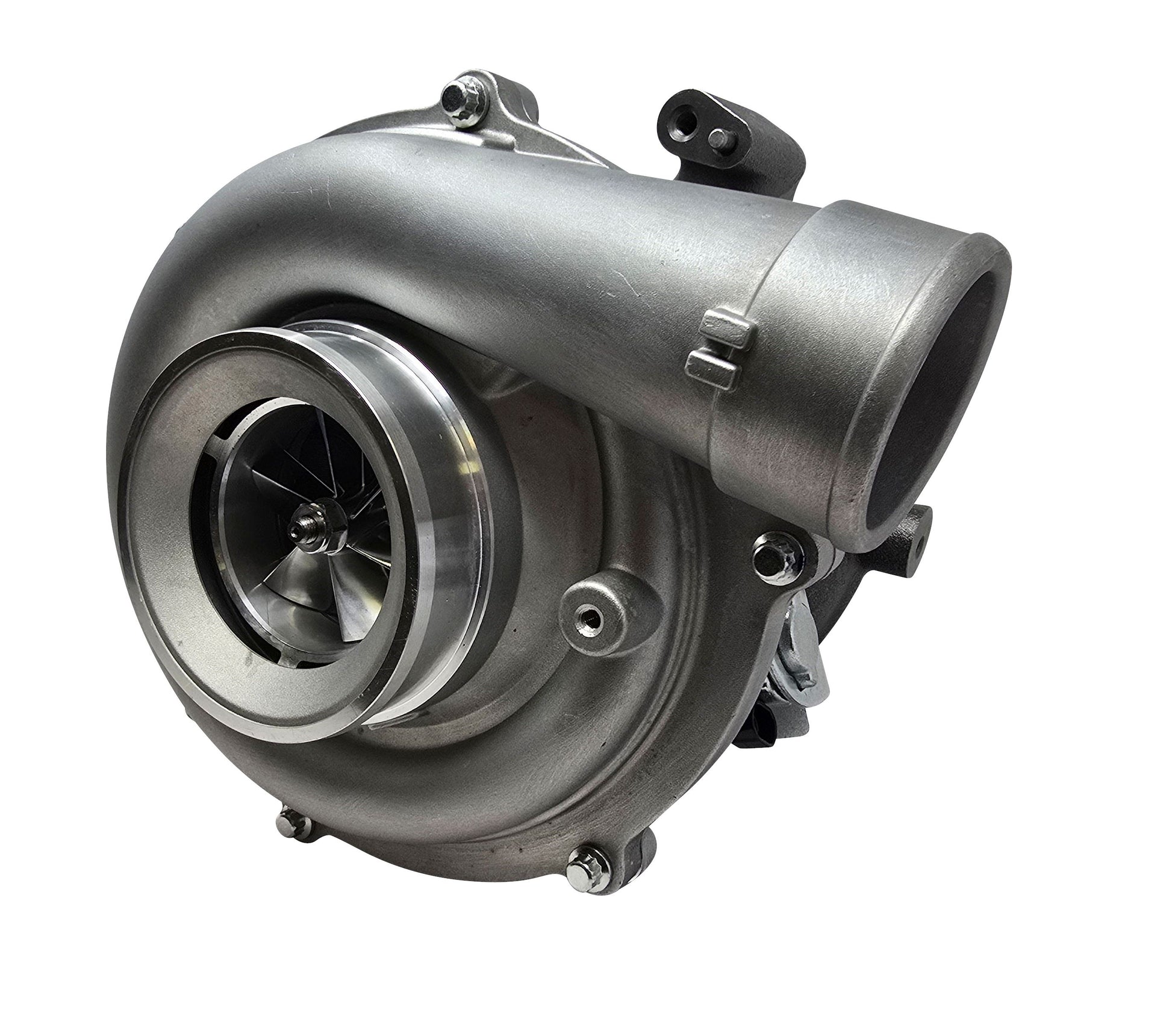

63.5mm compressor cover & billet 6+6 wheel
Upgraded 10 Blade Turbine Wheel
Balanced assembly
Includes turbo actuator

Billet Compressor Specs
Inducer: 63.4 mm
Exducer Base: 88.2 mm
Extended Tip: 94 mm
Primary Tip Height: 42 mm
Secondary Tip Height: 30 mm
Weight: 142 Grams
Nose Width: 14 mm Hex
Blades: 6/6
Extended Tip
Pre-balanced

Turbine Wheel Specs
10 Blade Turbine Wheel: Measures 72.5 x 66.5mm (early 03 style turbine housing)

Fits: 2003-2007 F250, F350, F450, F550 and Excursions. Also 2005-2010 E-Series Vans with the 6.0L Powerstroke.
Note: requires an 03 turbo pedestal
