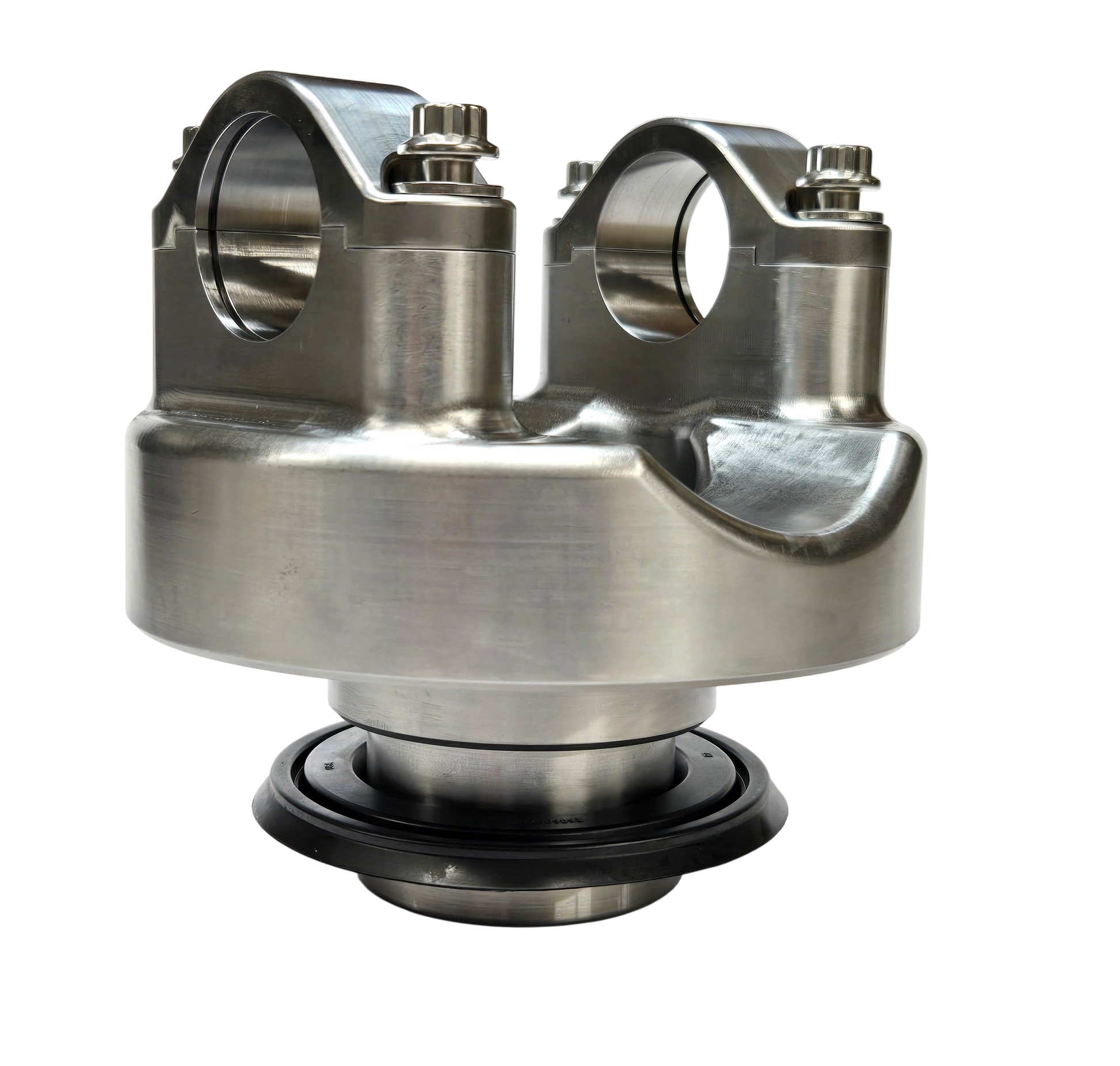

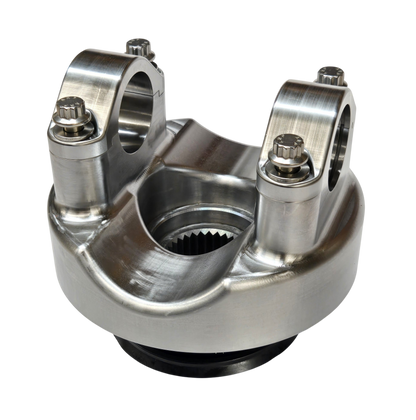

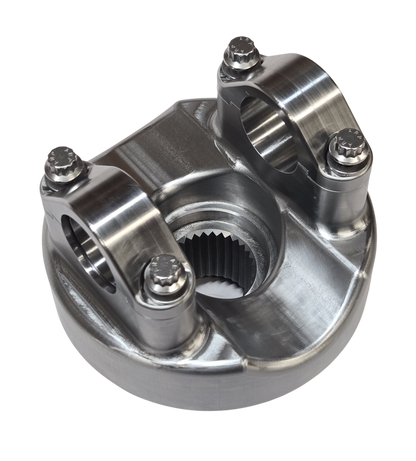

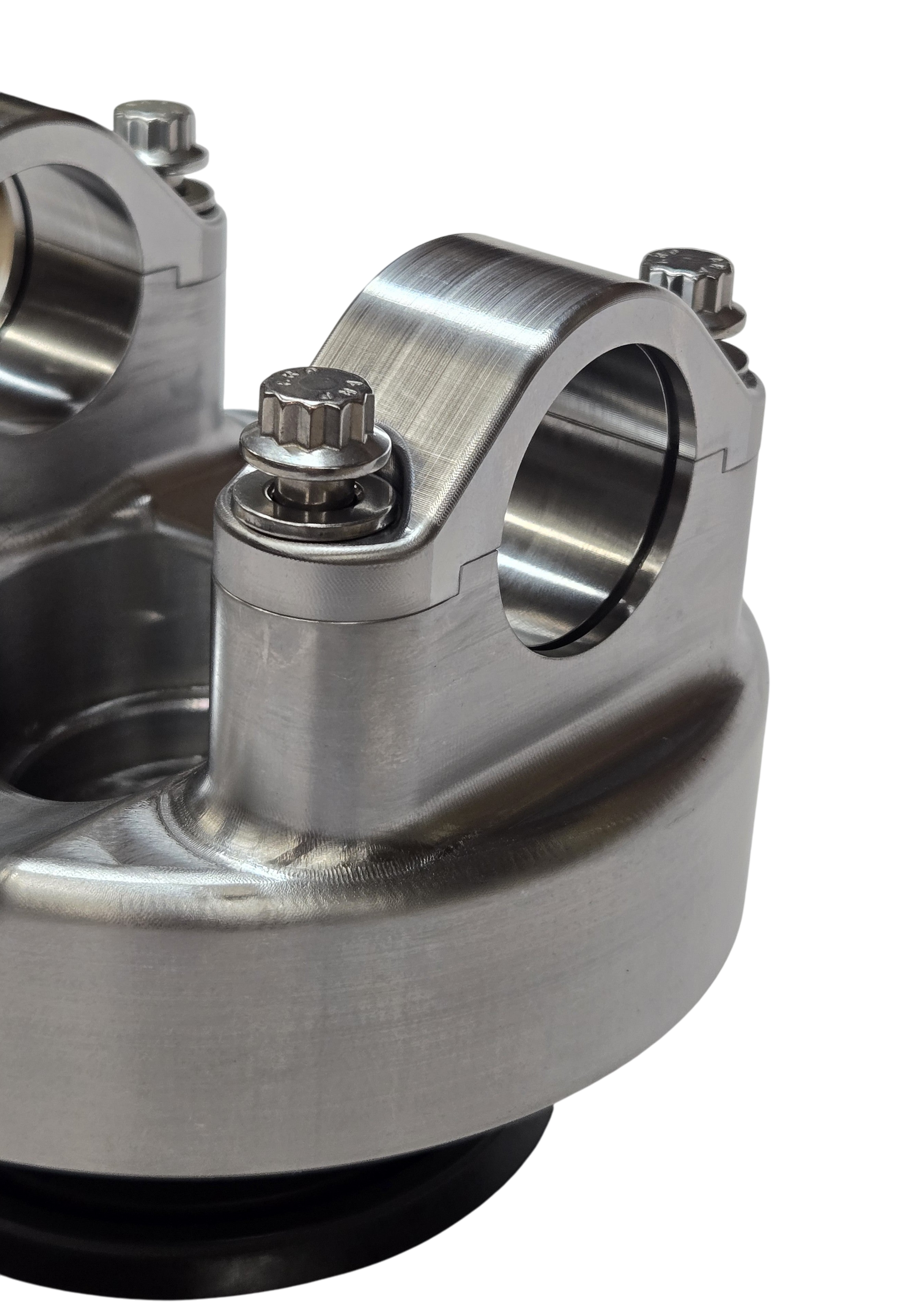

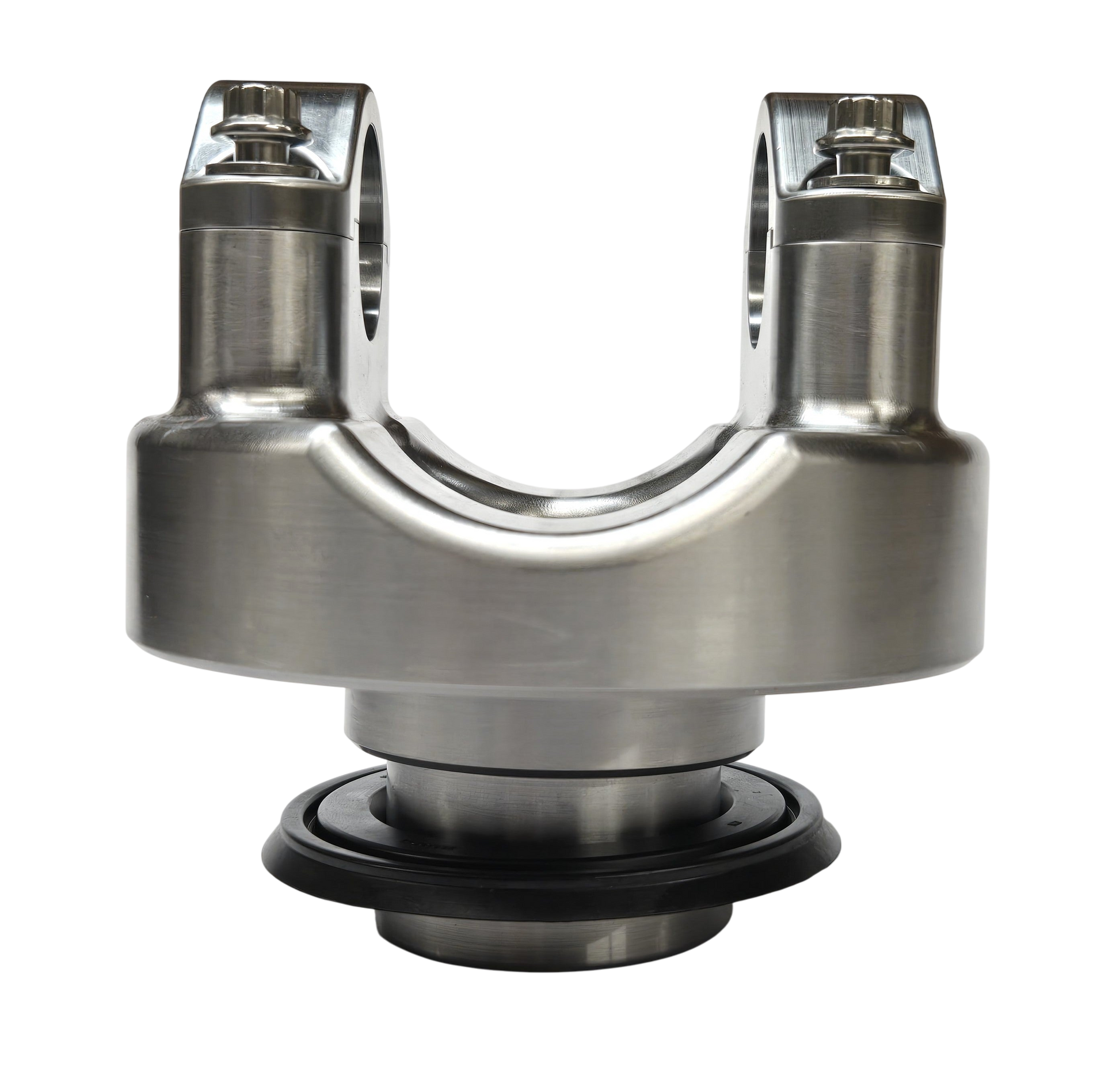

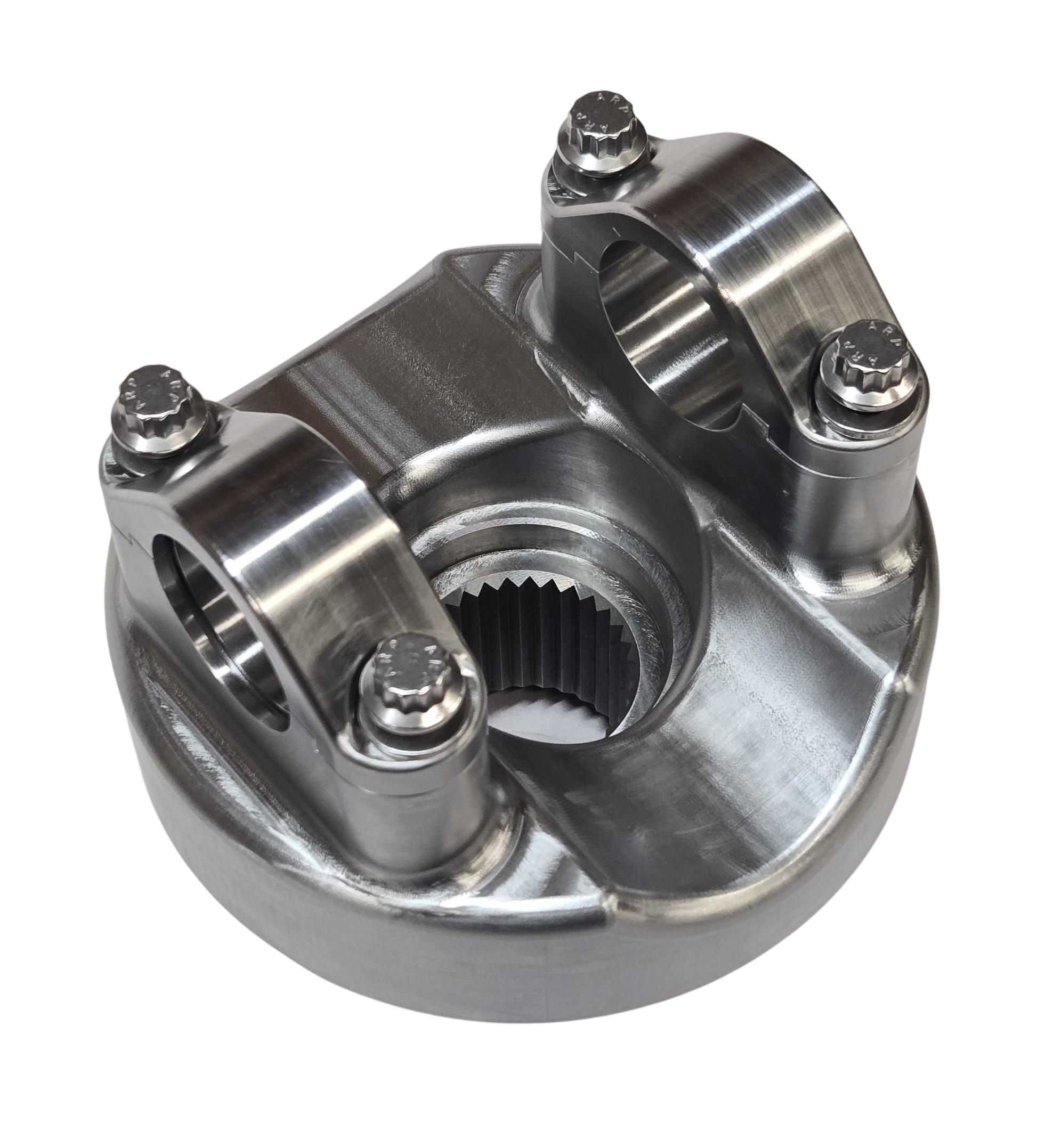

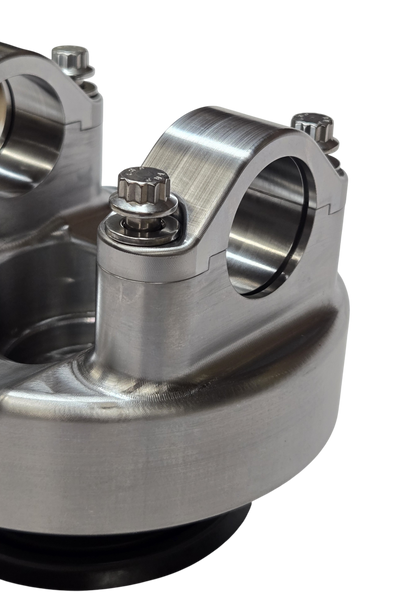

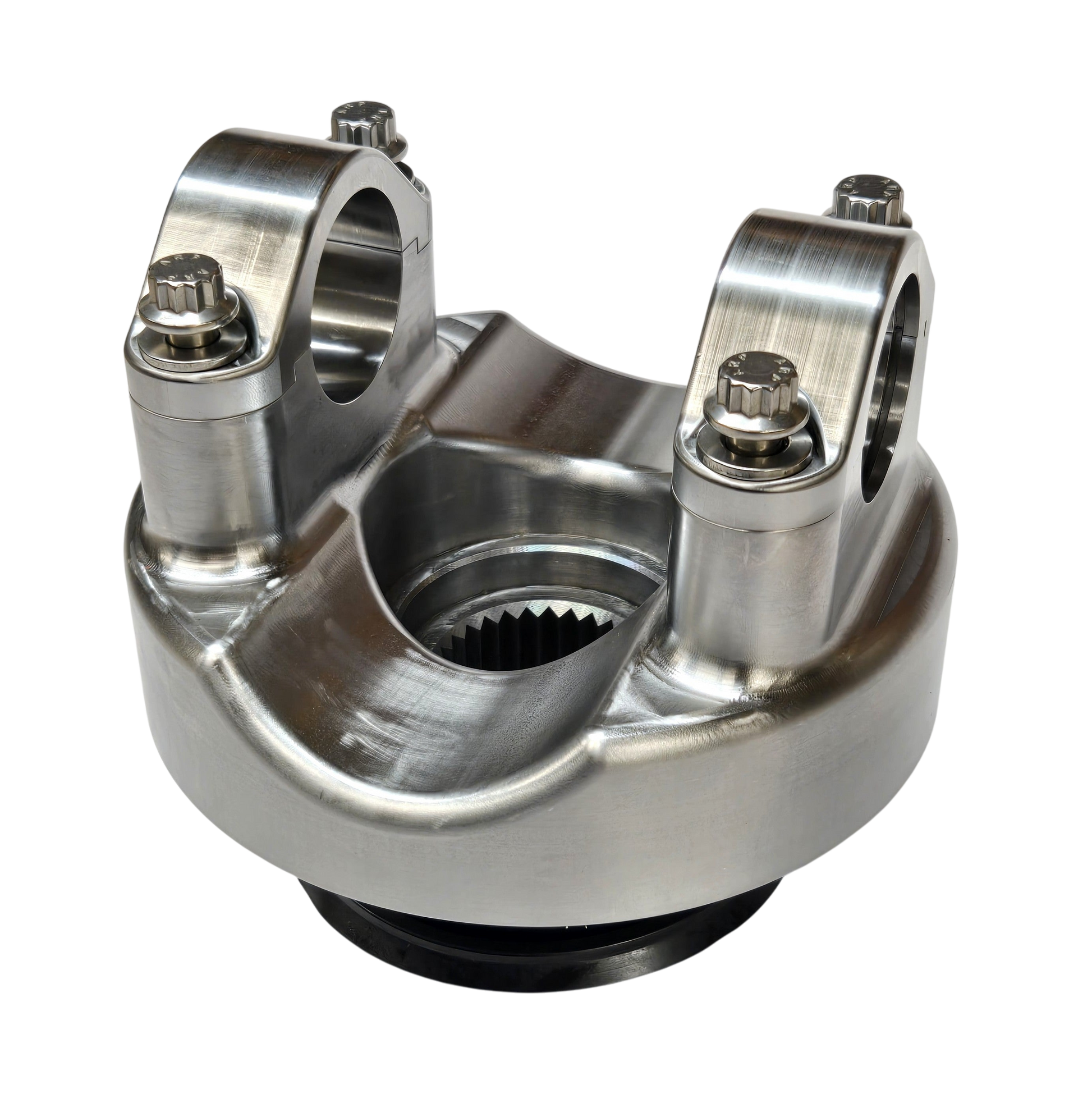

1480 Billet Pinion Yoke for Chevy GMC C/K Trucks 6.6l Duramax or Dodge Cummins

Features:
• Accepts 1480 Series U-Joint (4.188" Wide x 1.375" Cap OD)
• CNC Machined from 4140PH Steel
• 170KPSI 12-Point Bolts
• Seal Included

Fitment by axle - assuming a 1480 U-joint is used on driveshaft:

GM/AAM 11.5" (10 bolt rear) Fitment:
Chevy Silverado 2500 2001 - 2011
Chevy Silverado 3500 2001 - 2011
GMC Sierra 2500 2001 - 2011
GMC Sierra 3500 2001 - 2011
Dodge Ram 2500 2003 - 2013
Dodge Ram 3500 2003 – 2013
GM 10.5" (14 bolt rear) Fitment:
Chevy C20 / C35 1973 - 2002
GMC K20 / K35 1972 - 2000
GMC G15 / G35 Van 1975 - 1996
Chevy Suburban 1973 - 2011
Chevy Silverado HD 1999 – 2011

*Note: Some 1975-2006 trucks may have had a smaller 1410 u-joint from the factory. Such as 2001-2006 Allison equipped trucks. Please see U-joint measurements above.
