Keep the cooling system clean of debris with our 6.4l coolant filtration kit!

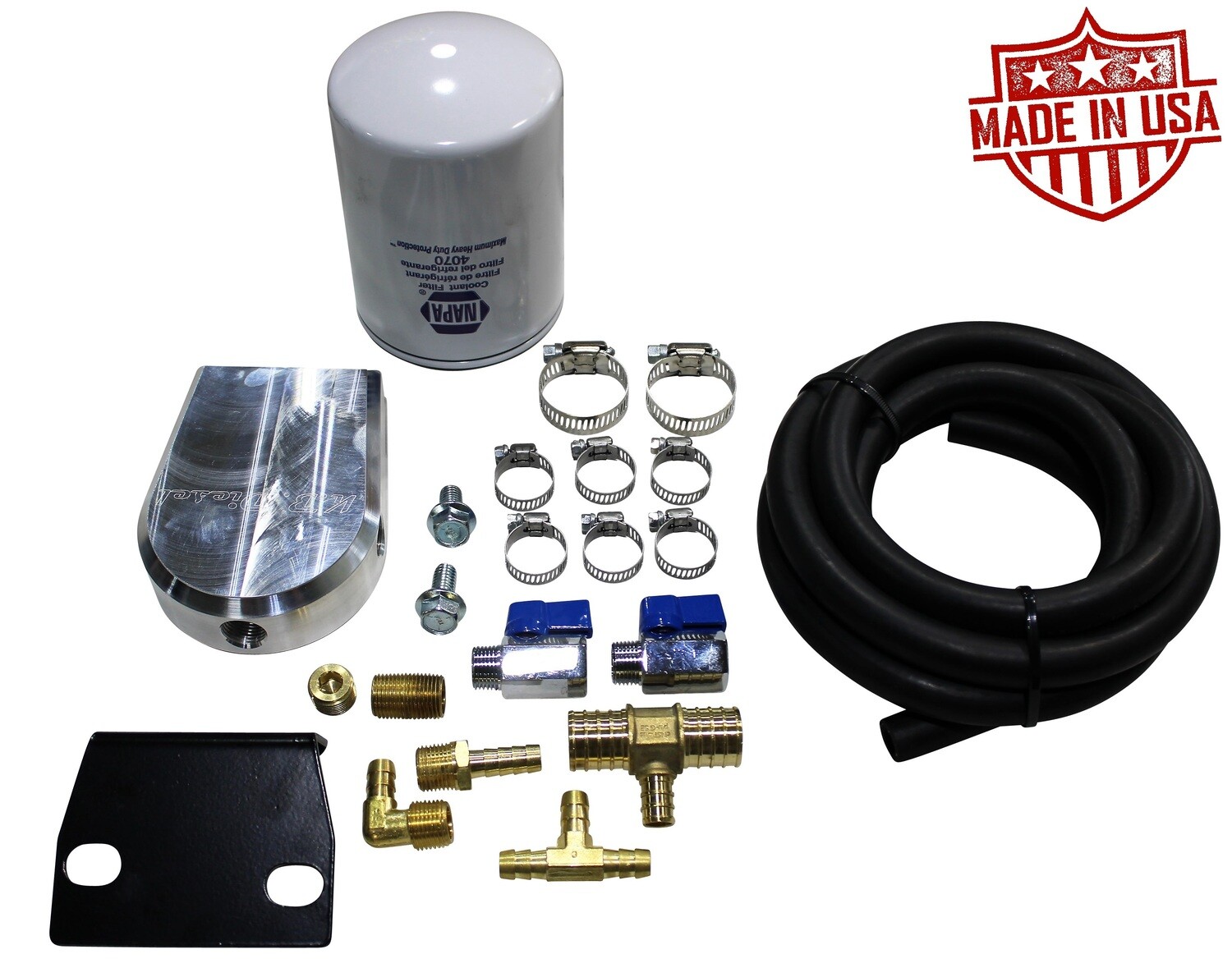

Includes:
1. Coolant Filter Base (Made in USA)
1. Mounting Bracket (Made in USA)
1. Option of Coolant Filter(s)
1. Filter Nipple
10.75' of 3/8" Coolant Hose
2. 3/8" Ball Valves
6. #6 Hose Clamps
2. #12 Clamps
1. Brass 3/8 MPT to 3/8 Barb
1. Brass 90° MPT to 3/8 Barb
1. Brass Tee 3/8-3/8-3/8
1. Brass Tee 3/4-3/8-3/4
2. 3/8 Mounting Bolts
1. 3/8 Countersunk Hex Plug
List of filters that can be used on our base:
NAPA: 4070, 4073, 4069
Wix: 24070, 24073, 2469
CAT: 435-5142
Fits: 2008-2010 Ford 6.4l Powerstroke equipped F250 & F350
Installation Notes:
Mounting Location: Passenger side frame rail to transmission cross member
Return Hose: Side of filter mount to 3/8" hose at the top of the radiator
Supply Hose: End of filter mount (90° from return hose) to lower 3/4" heater core supply hose
